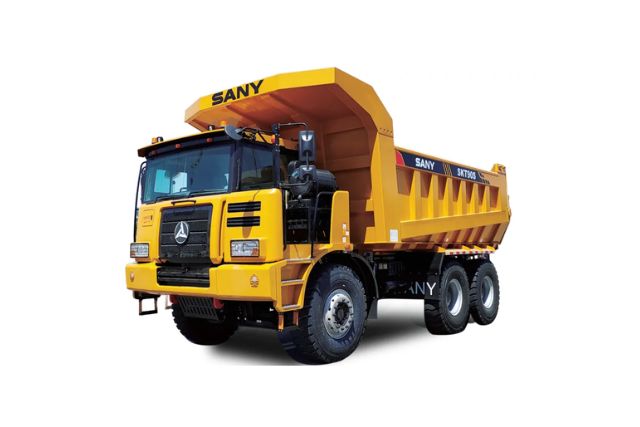

Ready To Buy Sany 2025 SKT90S (Automatic) Diesel Off-highway Mining Truck

Features

High-Strength Frame

The newly engineered frame features a low-stress, high-strength design that significantly reduces the risk of fatigue failure. It lowers overall stress levels by 51% compared to competing models, enhancing structural reliability and durability.

Hydro-Pneumatic Suspension

This advanced suspension system replaces conventional leaf springs, substantially increasing machine longevity and operator comfort. It effectively addresses the common issue of front suspension leaf spring failure, boosting operational uptime. With excellent shock absorption and damping capabilities, it also enhances frame load distribution and extends frame lifespan.

Oil and Gas Suspension

The upgraded front oil and gas suspension system delivers superior buffering and vibration control. It minimizes impact forces on key components such as the frame and cab, significantly reducing the chance of mechanical faults. This design eliminates the frequent problem of front plate spring fractures and contributes to a longer overall vehicle lifespan.

Parameters

Net Weight: 32T

Engine Model: Weichai WP13G530E310

Gearbox Type: Fast FC6A250DPR

Capacity (Struck/Heaped): 33/38m³

Size: 9107x3660x4530mm

Left/Right Hand Drive: Left/Right

Total Power: 390kW

Displacement: 12.54L

Maximum Torque: 2300NM

Max. Gradeability: 30%

Min. Turning Radius: 11000mm

Number/Type of Cylinders: 6/straight line

Lubrication System: Optional automatic lubrication

Automatic/Manual: Automatic

Axle: 25+35+35

Tyre: 16.00R25

Load Weight: 60T

Price: AED 2240000

Request for quote: +971525384269
