Offer 2025 Sinoboom AB22J Plus – Advanced Articulated Boom Lift for Tough Jobs

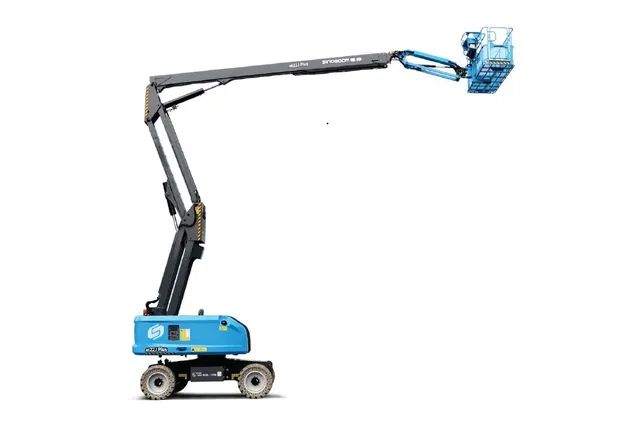

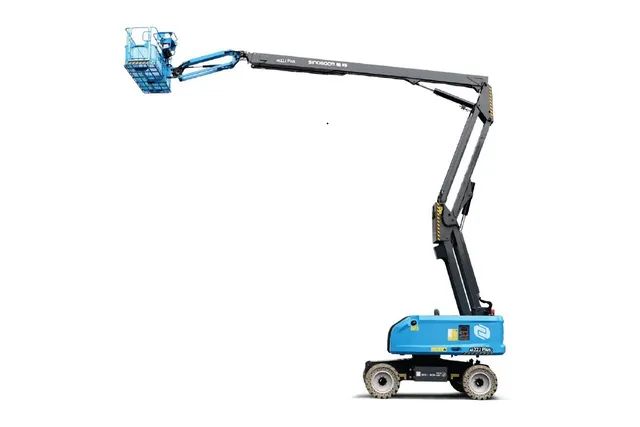

The Sinoboom AB22J Plus articulated boom lift delivers excellent adaptability and operational efficiency, with a 454kg heavy-duty load capacity and an automatic performance adjustment system that responds to load changes. This ensures optimal operation for a variety of tasks. Its 4-wheel AC drive supports dependable outdoor climbing on gradients up to 40%. The machine’s continuous 360° turntable rotation and active oscillating function enhance its ability to maneuver on rugged terrain. Built for flexibility, it easily overcomes obstacles and offers safety through improved stability, a fault diagnosis system, and accurate controls for reliable, efficient use in demanding environments.

Highlights

• Compact and Agile Design
• All-Terrain Versatility
• Safe, Advanced, Easy to Operatel

Technical specification

Reference Number: AMH268

Operating weight (kg): 12,000 Kg

Engine Output: 36 kW

Max Number of Operators: 3

Working Height: 23.6 m

Platform Capacity: 454 kg

Telematics: Available

Max Horizontal Extension: 13.35 m

Power: Diesel

Drive × Steer: 4WD x 2WS (4WS）

Turntable Rotation: 360°/Continuous

Gradeability: 40%

Features

• Proportional control with 3 joysticks
• Continuous 360° turntable rotation
• Active oscillating function
• Four-wheel steering - four-wheel brake
• Weighing system and automotive sleeves for all pipes
• AC power line to the platform
• 7-in smart screen and voice broadcast

Price: AED 163000

Request for quote: +971525384269
