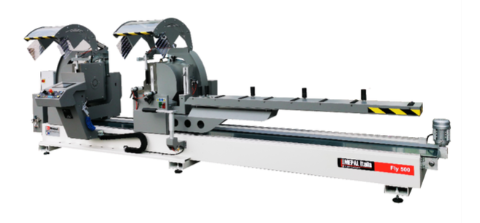

MEPAL FLY 500 Double Head Cutting-off Machine- MADE IN ITALY

Advertised on 08/06/2023

Ask the price

The FLY 500 Double Head Cutting-off Machine is a versatile and automated cutting machine designed for aluminum profiles or similar materials. Here's a breakdown of its features based on the information provided:

Cutting Length: The machine has a cutting length of 5 meters, allowing for the precise cutting of long profiles.

Double Head with Fixed and Movable Units: The machine features a fixed cutting unit on the left side and an automatic right head that is movable via numeric control. This setup allows for efficient and flexible cutting operations.

Pneumatic Tilting of Both Heads: Both cutting heads on the machine can tilt pneumatically. The heads can tilt at 90°, -45°, and -22.30° angles. The mechanical stops enable cutting at intermediate degrees as well.

Horizontal and Vertical Pneumatic Clamps: The machine is equipped with horizontal and vertical pneumatic clamps to securely hold the profiles during the cutting process. This ensures stability and accuracy in cutting.

Low Pressure Device and Blade Protection: The machine is equipped with a low-pressure device, which helps to prevent damage to the profiles during clamping. It also features blade protection to ensure operator safety.

Movable Side Support and Pneumatic Central Support: The machine includes a movable side support with a length of 2.5 meters, providing additional support for longer profiles. It also has a pneumatic central support to maintain stability during cutting.

Pneumatic Spray Mist Lubrication: The machine utilizes a pneumatic spray mist lubrication system. This system helps to keep the cutting process smooth and efficient by reducing friction and extending the life of the saw blades.

Included TCT Saw Blades: The machine comes with two TCT (Tungsten Carbide Tipped) saw blades with a diameter of 500mm. TCT blades are known for their durability and high-performance cutting capabilities.

These features make the FLY 500 Double Head Cutting-off Machine suitable for precise and efficient cutting operations on aluminum profiles. EQUIPPED WITH ELECTRONIC POSITION ABLE TO

Manage single cuts

Memorize 100 profile codes and their values

Memorize cutting list already calculated via keyboard

Manage frame typologies

Metric ruler with reading index

Memorize cutting list already calculated by USB.
