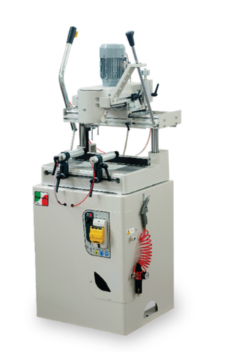

MASTER Manual Single Head Copy Router

Advertised on 08/06/2023

Ask the price

The MASTER Manual Single Head Copy Router is a specialized machine designed for copying and shaping aluminum profiles or similar materials. Here are the features and specifications based on the information provided:

Single Head: The machine is equipped with a single cutting head for copying and shaping profiles.

Pneumatic Clamps: The machine features pneumatic clamps to securely hold the profiles during the routing process. These clamps provide stability and ensure accurate copying.

Lubrication System: The machine is equipped with a lubrication system, which helps to reduce friction and enhance the performance of the cutting tool.

Manual Tracer Points: The machine is equipped with manual tracer points. These tracer points are used to trace the shape of the profile onto the workpiece, enabling accurate copying.

Working Capacities: The machine has the following working capacities: a maximum profile width of 330mm, a maximum profile height of 150mm, and a maximum profile depth of 130mm. These capacities determine the size and dimensions of the profiles that can be effectively copied.

Tool Speed: The cutting tool operates at a speed of 12,000 revolutions per minute (RPM). This high-speed rotation allows for efficient routing and shaping of the profiles.

Three-Phase Motor: The machine is powered by a three-phase motor with a power rating of 1 HP. This motor provides the necessary power for the cutting and copying operations.

The MASTER Manual Single Head Copy Router is designed for manual operation, providing precision and control in copying the shape of profiles. STANDARD EQUIPMENT

Collet D. 8mm
Pneumatic clamping set
2x tracer points with 3 diameters: 5/8/10 mm
Copy template for standard executions
Profile’s stop
