Description

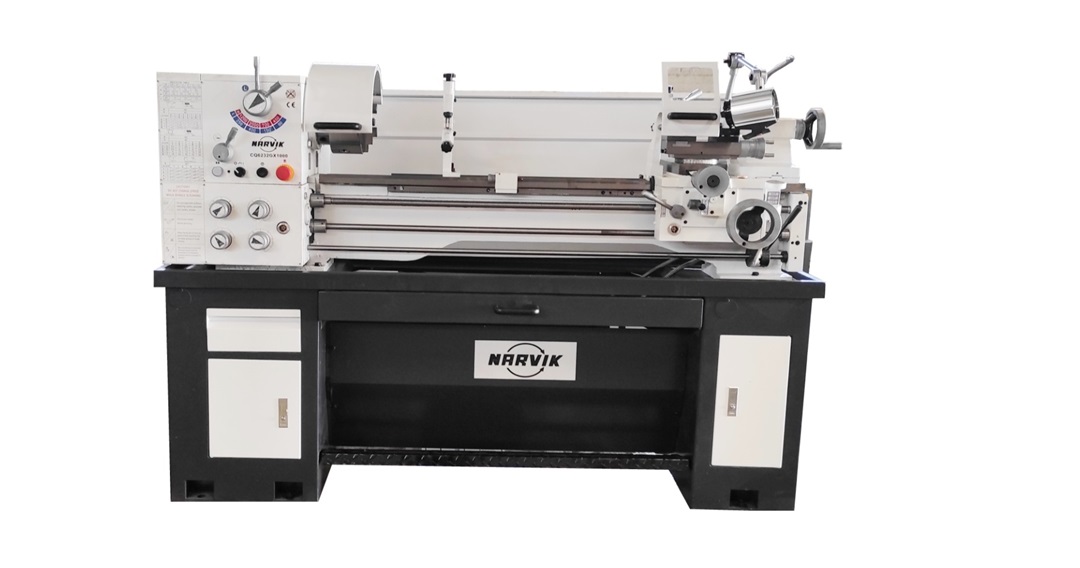

LATHE MACHINE
Model Number	: CQ6232G x 1000
Brand name	: NARVIK
Swing over bed	: 330/360 mm
Swing over support	: 224 mm
Swing in gap	: 500 mm
Center height	: 166/178 mm
Distance between centers	: 1000mm
Bed Width	: 186mm
Bed height	: 294 mm
Motor output	: 1.5kw
Voltage	: 220V / 380v
Spindle bore	: 52mm
Camlock system	: D1-4
Spindle speed	: 70-2000 rpm
Cross slide travel	: 180mm
Compound slide travel	: 95mm
Lead screw diameter	: 22mm
Feed rod diameter	: 19mm
Cutting tool (max section)	: 16mm x 16mm
Imperial thread	: 2 ¼ - 40 T.P.I
Metric tread	: 0.45-10mm
Longitudinal feed	: 0.078-1.044mm/r
Cross feed	: 0.018-0.238mm/r
Tailstock quill diameter & taper	: 32mm, MT #3
Dimension	: 1930 x 750 x 1500 mm
Net weight (approx.)	: 580kg
Shipping weight (approx.)	: 650kg
Brand New	: CHINA
