Description

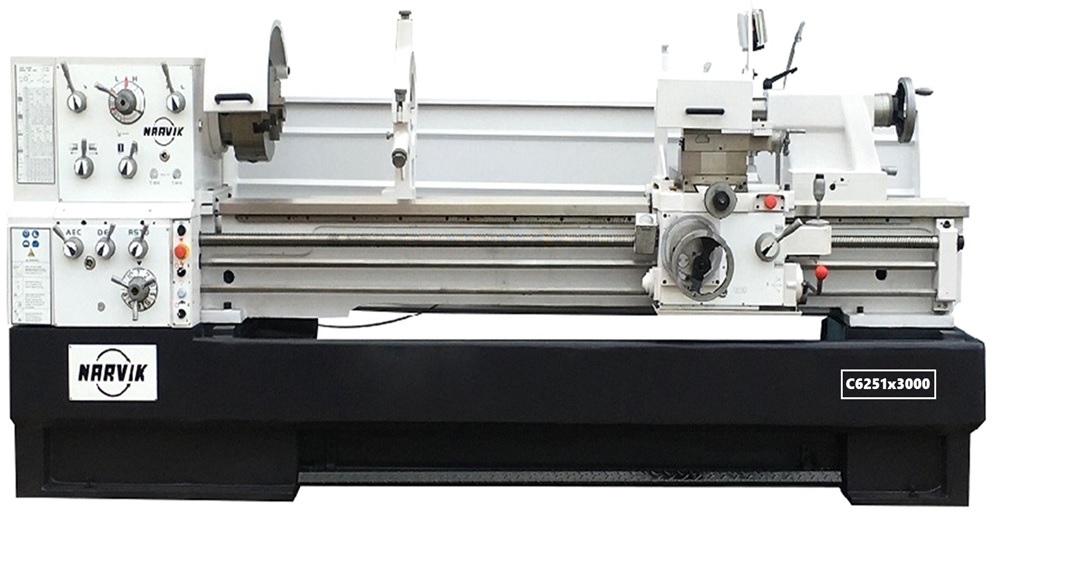

LATHE MACHINE
Model Number	: C6251 x 3000
Brand name	: “NARVIK”
CAPACITY
Swing Over Bed	: 510mm (20”)
Swing Over Gap	: 738 mm (29”)
Swing Over Cross Slide	: 305 mm
Length of Gap	: 270 mm
Distance Between Centers	: 3000 mm (118”)
Height of Center	: 255 mm
HEADSTOCK
Width of Bed	: 350mm (13-3/4”)
Spindle Bore	: 105 mm
Spindle Nose	: D1-8
Taper of Spindle Bore	: No.7 Morse
Range of Spindle speed	: 12 changes 25-1600 r/min
FEEDS AND THREADS
Max. travel of compound rest	: 135 mm
Max. travel of cross slide	: 320 mm
Lead screw pitch	: 6mm or 4 T.P. I
Max. Section of pitch	: 25 x 25 mm (1 x 1”)
Longitudinal of feeds range	: 35 kinds 0.059-1.646 mm/rev (0.0022”- 0.0612”/rev)
Cross- feeds range	: 35 kinds 0.020-0.573mm (0.00048”- 0.01354”)
Metric threads range	: 47 kinds 0.2-14 mm
Inch threads range	: 60 kinds 2-112 T.P.L
Diametrical pitches range	: 50 kinds 4-112 D.P
Module pitches range	: 39 kinds 0.1-7 M.P
TAILSTOCK
Dia. of Tailstock Sleeve	: 75 mm (3”)
Travel of Tailstock Sleeve	: 180 mm (7”)
Morse Taper of Tailstock sleeve	: No. 5 Morse
Cross Adjustment	: ±13mm (±1/2”)
MOTOR
Main Motor Power	: 7.5KW (10HP) 3PH
Brand New	: China
