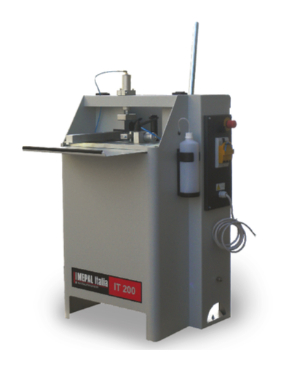

IT 200 Horizontal End Milling Machine

Advertised on 08/06/2023

Ask the price

The IT 200 Horizontal End Milling Machine is a specialized machine used for milling operations on aluminum or similar materials. Here are the features and specifications based on the information provided:

Manual Feeding: The machine requires manual feeding of the workpiece. The operator controls the movement of the workpiece during the milling process.

Milling at 90°: The machine is designed for milling operations at a 90° angle, allowing for precise and perpendicular milling cuts.

Manual Change of Cutter Block: The machine allows for manual changing of the cutter block. This feature provides flexibility to use different cutter blocks based on the specific milling requirements.

Spindle Speed: The machine is equipped with a spindle that operates at a speed of 2800 revolutions per minute (RPM). The spindle speed affects the cutting performance and the quality of the milling operation.

Useful Stroke: The machine has a useful stroke of 250mm. This refers to the maximum distance the milling cutter can travel horizontally during the milling process.

Max Cutter Diameter: The machine can accommodate a maximum cutter diameter of 160mm. The cutter diameter determines the width of the milling cut and affects the precision and efficiency of the milling operation.

Three-Phase Motor: The machine is powered by a three-phase motor with a power rating of 1.5 HP. This motor provides the necessary power for the milling operation.

The IT 200 Horizontal End Milling Machine is designed for manual operation, offering flexibility and control for precise milling at a 90° angle. STANDARD EQUIPMENT

Pneumatic clamping set

Turret stop for presetting 6 milling depts

Pneumatic lubrification Nr. 1 cutter block D. 32 mm

Full protection guard
