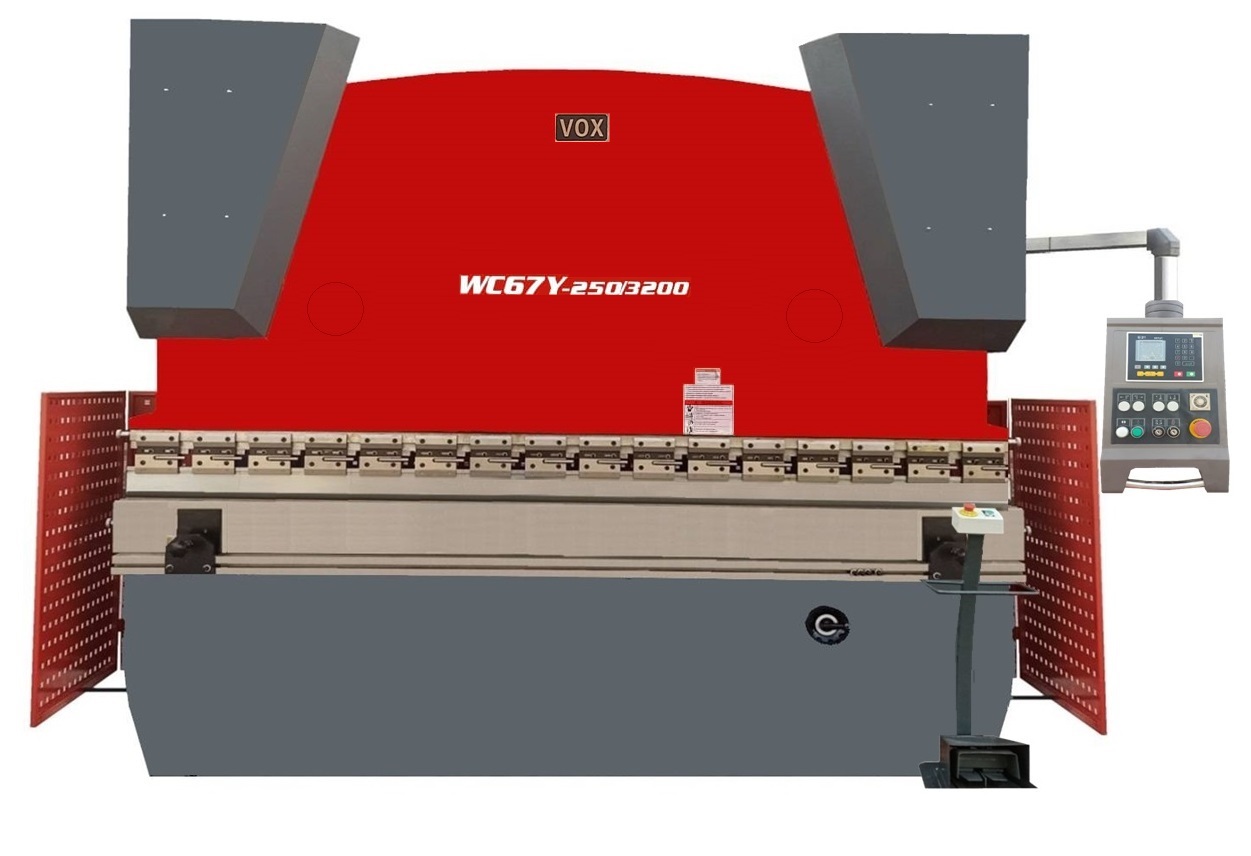

Name: HYDRAULIC PRESS BRAKE - WC67Y-250Ton x 3200 (With E21)
Rating: 5 (5 reviews)

Industrial machines

Advertised on 11/04/2023

Ask the price

Seller Informations

Contact Seller

Description


With E21 – NC Controller
Nominal Force		: 2500 KN
Working bench length		: 3200 mm
Unload Travel Times of Slide Block		: 3 min-1
Distance Between Columns		: 2540 mm
Throat Depth		: 450 mm
Slide Block Stroke		: 250 mm
Max. opening height between bench and slide block		: 500 mm
Adjustment of slide block stroke		: 180 mm
Working Pressure of Hydraulic System		: 32 MPa
Travel Speed of Slide Block	Unload	: 110 mm/s
	Full Load	: 9 mm/s
	Return Stroke	: 115 mm/s
Two-stage Idler Gear Pump	Flow Rate	: 40 ml/r
	Pressure	: 32 MPa
Key Motor (4-B35)	Power	: 18.5 kW
	Speed	: 1470 r/min
Motor for Slide Block adjustment(4-B14)	Power	: 0.37 kW
	Speed	: 1465 r/min
Motor for Back Plate Striker Adjustment	Power	: 0.55 kW
(6-B3)	Speed	: 930 r/min
Dimension (L x W x H)		: 3600 x 2210 x 2915 mm
Weight		: 14000 Kg. (14 Ton)
Capacity of Oil Tank		: 500L
Operating Voltage		: 380 V / 50/60 Hz
Temperature around Machine		: 5-40ºC
Humidity around Machine		: 30-80%
Brand New		: China
