Description

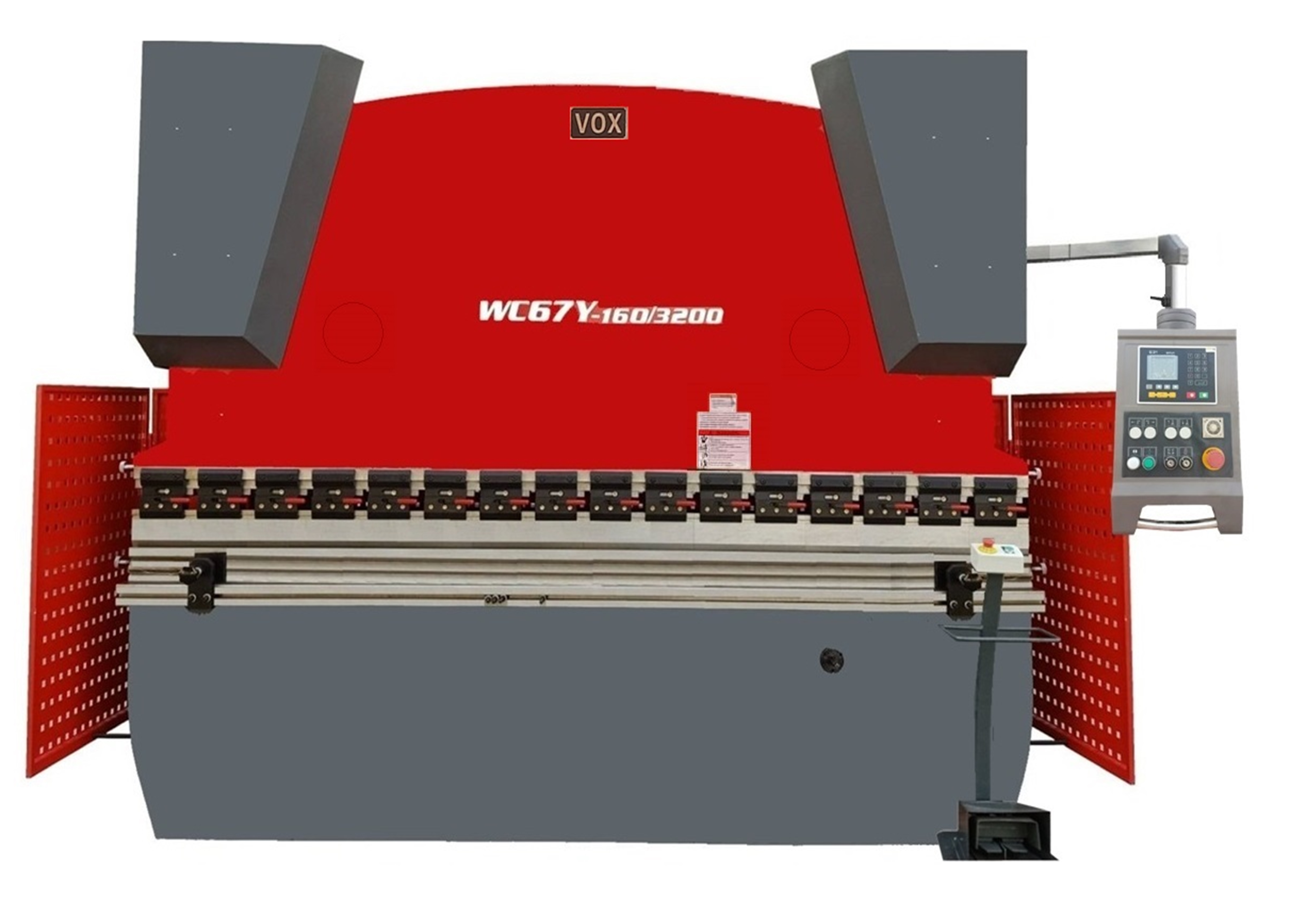

HYDRAULIC PRESS BRAKE MACHINE
Model No		: WC67Y - 160Ton x 3200
Brand Name		: “VOX”
With E21 – NC Controller
Nominal Force		: 1600 KN
Working Bench Length		: 3200 mm
Unload travel times of slide Block		: 6 minˉ¹
Distance between columns		: 2540 mm
Throat Depth		: 330 mm
Slide block stroke		: 200 mm
The max opening height between bench & slide block		: 465 mm
Adjustment of slide block stroke		: 150 mm
Working Pressure of Hydraulic system		: 30 Mpa
Travel speed of slide block	Unload	: 120 mm/s
	Full Load	: 11 mm/s
	Return Stroke	: 115 mm/s
Two-stage idler gear pump	Flow Rate	: 32 mL\r
	Pressure	: 32 Mpa
Key Motor (4-B35)	Power	: 15 kw
	Speed	: 1460 r/min
Motor for slide block adjustment (4-B14)	Power	: 0.37 kw
	Speed	: 1400 r/min
Motor for back plate strike adjustment (6-B3)	Power	: 0.55 kw
	Speed	: 930 r/min
Overall Dimension ( L x W x H)		: 3650 x 2110 x 2610mm
Weight		: 10,700 kg. (10.7 Ton)
Oil Tank Capacity		: 420 L
Temperature around Machine		: 5-40 ˚C
Humidity around Machine		: 30-80 %
Brand New		: China
