Name: HYDRAULIC PRESS BRAKE MACHINE - WC67Y – 63 Ton x 2500 mm (With E21)
Rating: 5 (5 reviews)

Industrial machines

Advertised on 11/04/2023

Ask the price

Seller Informations

Contact Seller

Description

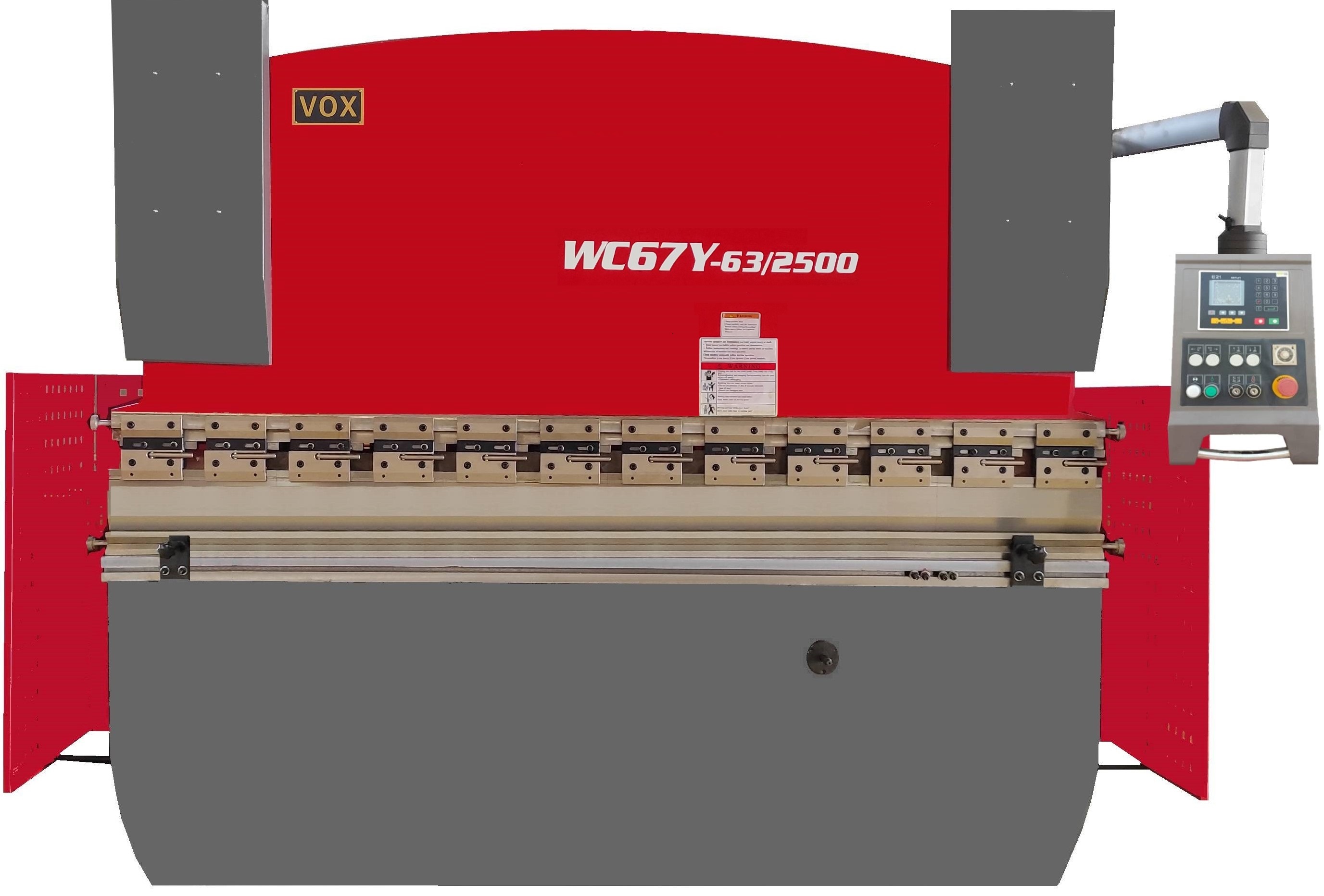

HYDRAULIC PRESS BRAKE MACHINE
Model No		: WC67Y – 63 Ton x 2500
Brand Name		: “VOX”
With E21 – NC Controller
Nominal Pressure		: 630 KN
Working Table Length		: 2500 mm
Unload travel times of slide block		: 10 minˉ¹
Distance between columns		: 2000 mm
Throat Depth		: 250 mm
Slide Block Stroke		: 100 mm
Max. open height between bench & slide block		: 345 mm
Adjustment of slide block stroke		: 80 mm
Working Pressure of Hydraulic System		: 25 Mpa
Travel speed of Slide Block	Unload	: 105 mm/s
	Full Load	: 11 mm/s
	Return Stroke	: 102 mm/s
Two-stage idler Gear Pump	Flow Rate	: 12 ml/r	The Max Pressure is 25Mpa
	Pressure	: 32 Mpa
Key Motor (4-B35)	Power	: 5.5 Kw
	Speed	: 1440 r/min
Motor for Slide block adjustment (4-B14)	Power	: 0.18 kw
	Speed	: 1440 r/min
Motor for Back plate striker adjustment (6-B3)	Power	: 0.55 KW
	Speed	: 930 r/min
Overall Dimension (L x W x H)		: 2680 x 1730 x 2200 mm
Net Weight		: 5400 kg. (5.4 Ton)
Capacity of Oil Tank		: 135 L
Temperature around Machine		: 5-40 ˚C
Humidity around Machine		: 30-80 %
Brand New		: China
