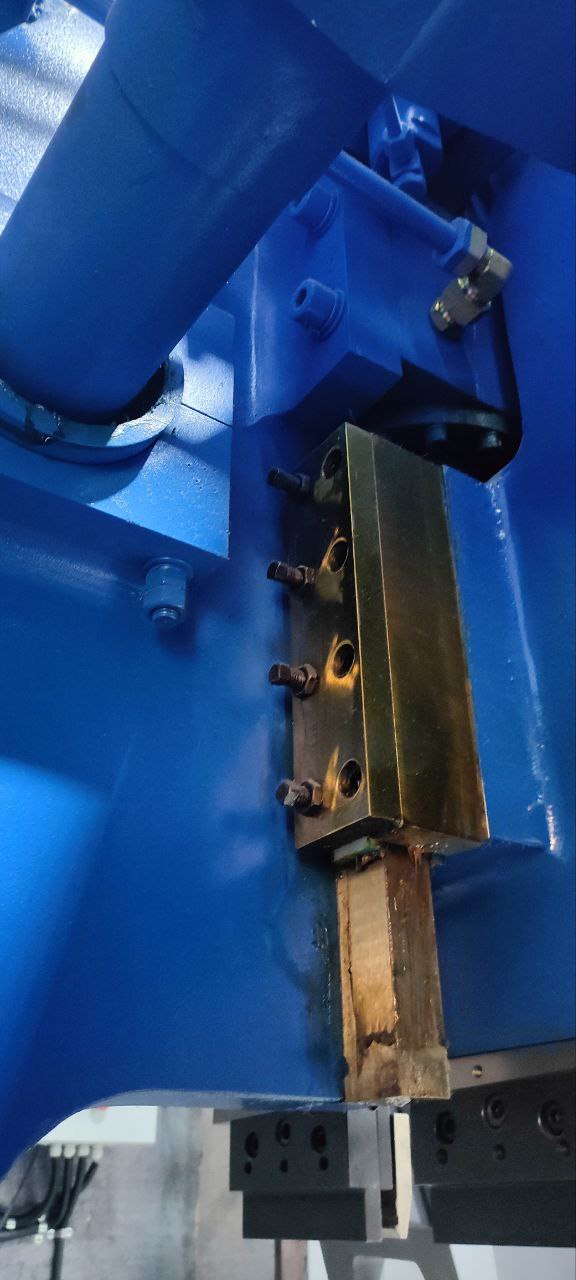

Hydraulic Press Brake Machine

HYDRAULIC PRESS BRAKE MACHINE C/W NC CONTROLLER HPB - 125/32K

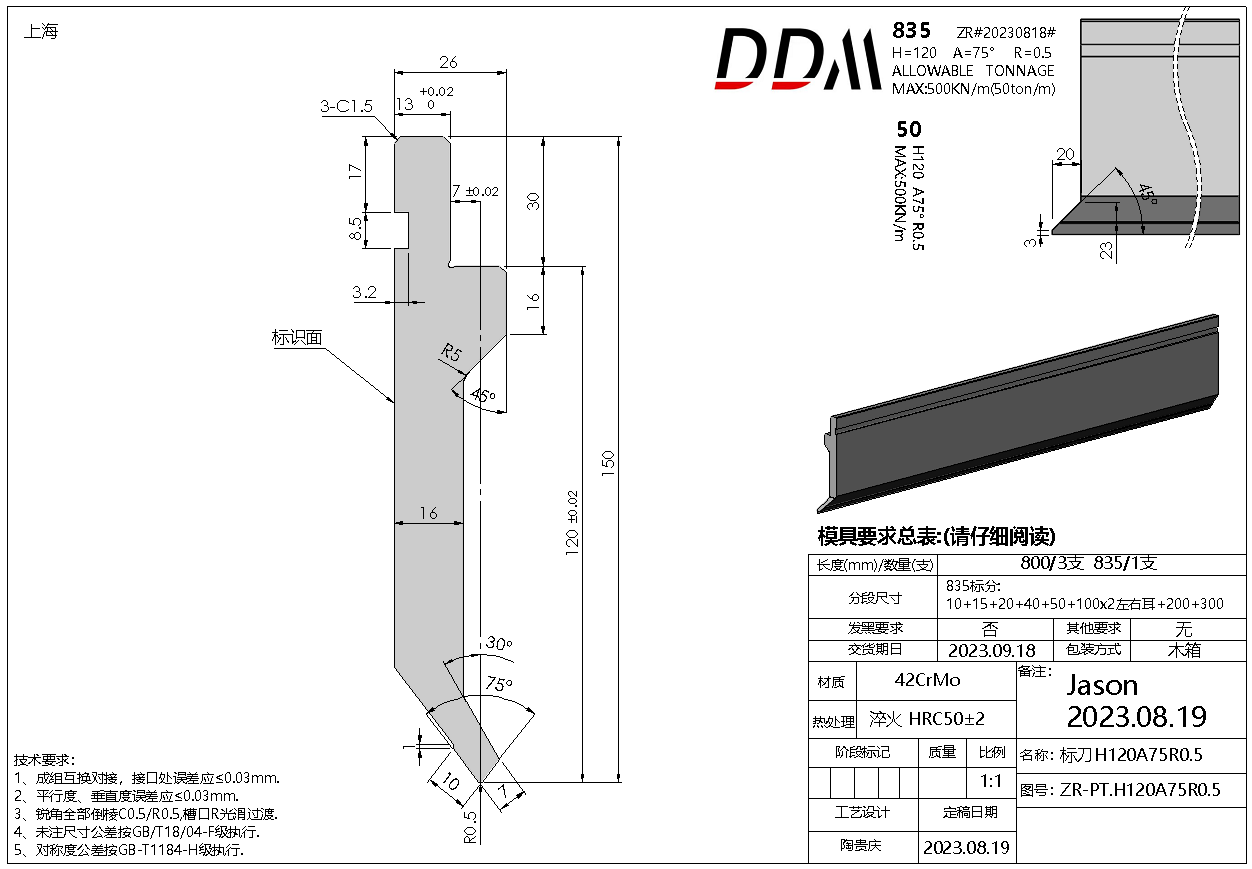

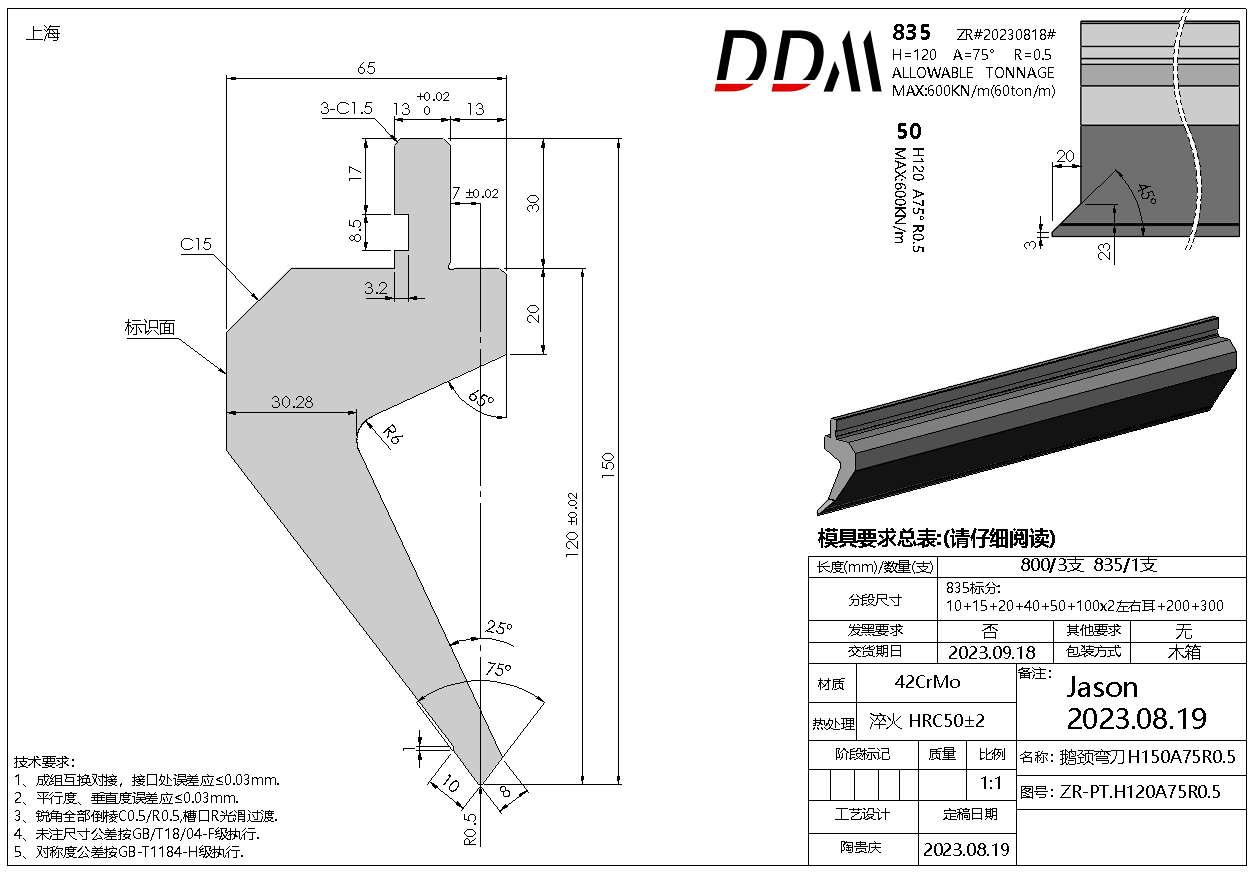

A great machine for basic tasks. All mechanisms are serviced and in good working order. The machine was used for bending sheet 1,5 mm and below. Hydraulic Oil ISO 68 was used in the hydraulic system. The machine comes with 1 multi die(3200mm), standard punch 800mm section(3200mm), 2 custom punches(straight and goose neck sections 800x3mm +300 /200 /100L //100R/50/40/20/15/10). The machine is available for demonstration in Dubai.

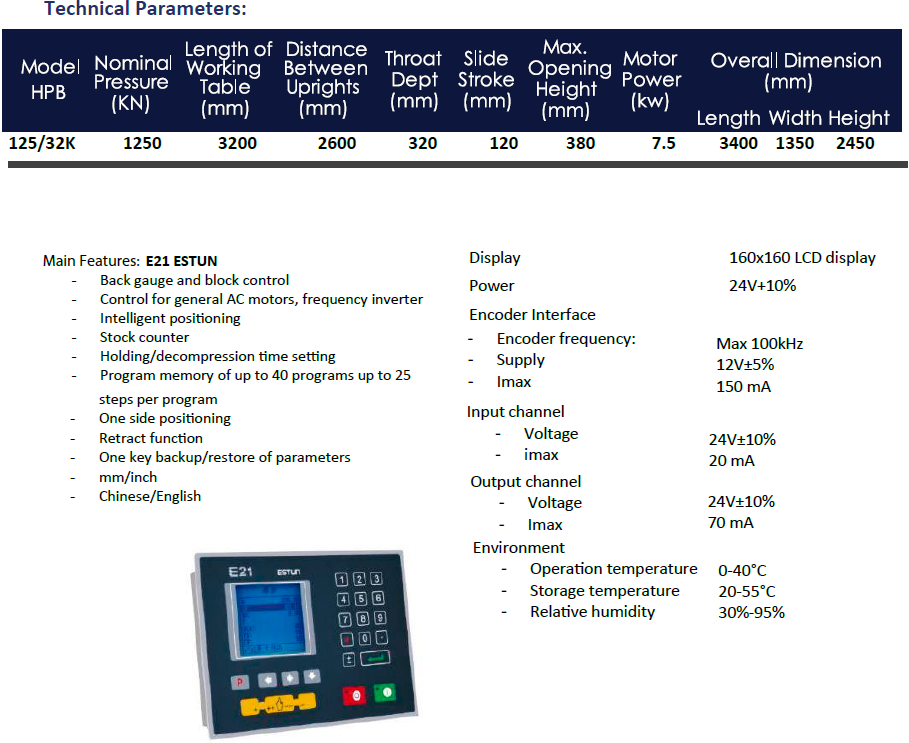

Technical details:

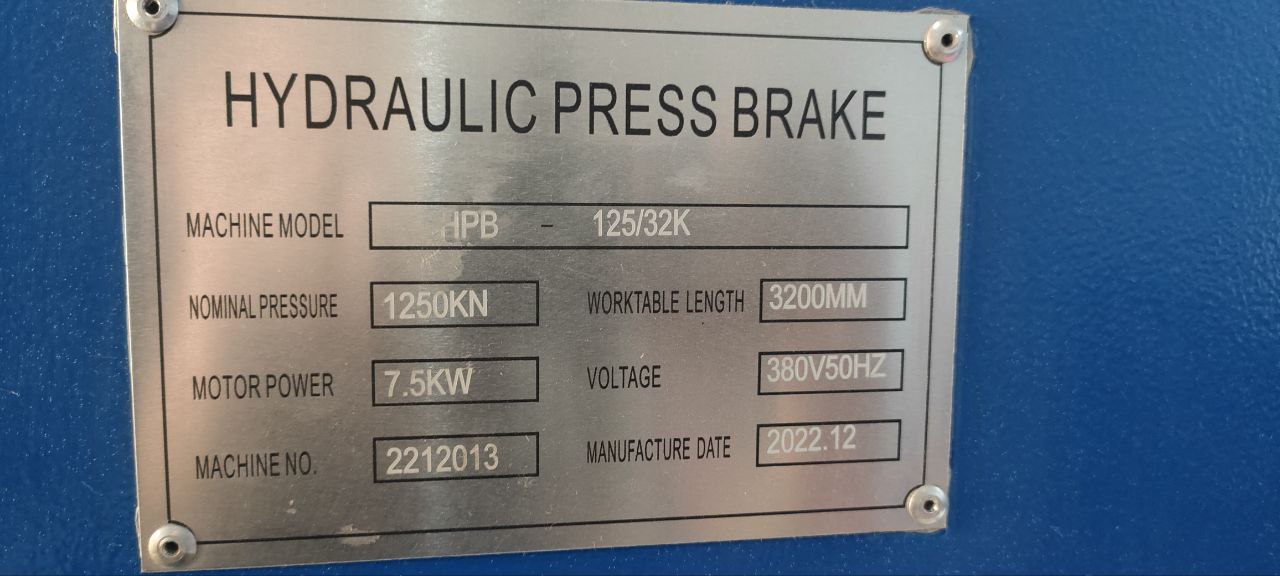

Model: 125/32K
Nominal Pressure(kN): 1250
Sheet thickness(mm): SS(2mm - 2800 length less and more), MS(5mm less and more), GI(2mm less and more)
Length of working table (mm): 3200
Distance between uprights (mm): 2600
Throat Dept(mm): 320
Slide Stroke(mm): 120
Max opening Height(mm): 380
Motor power (kW): 7,5
Overall dimensions (mm): L: 3400 W: 1350 H: 2450

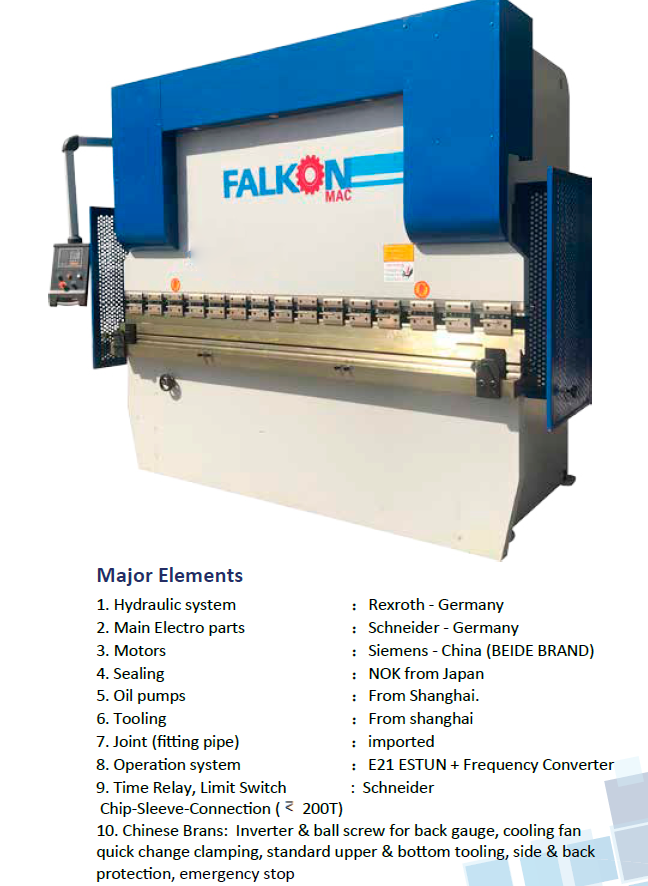

Major Elements

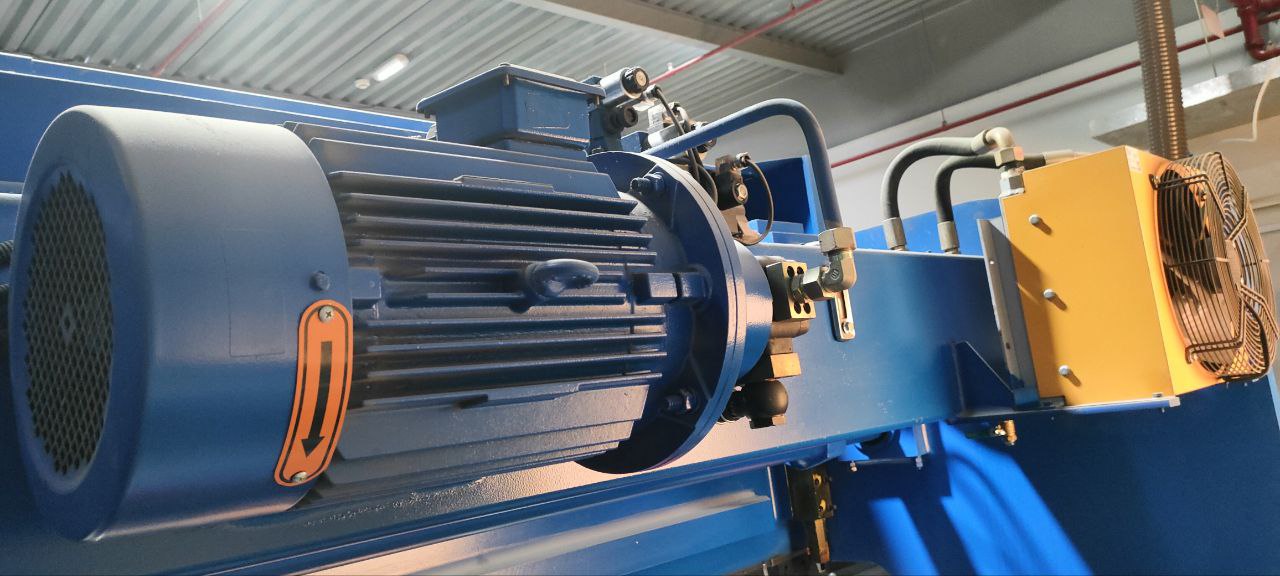

1. Hydraulic system ：Rexroth - Germany

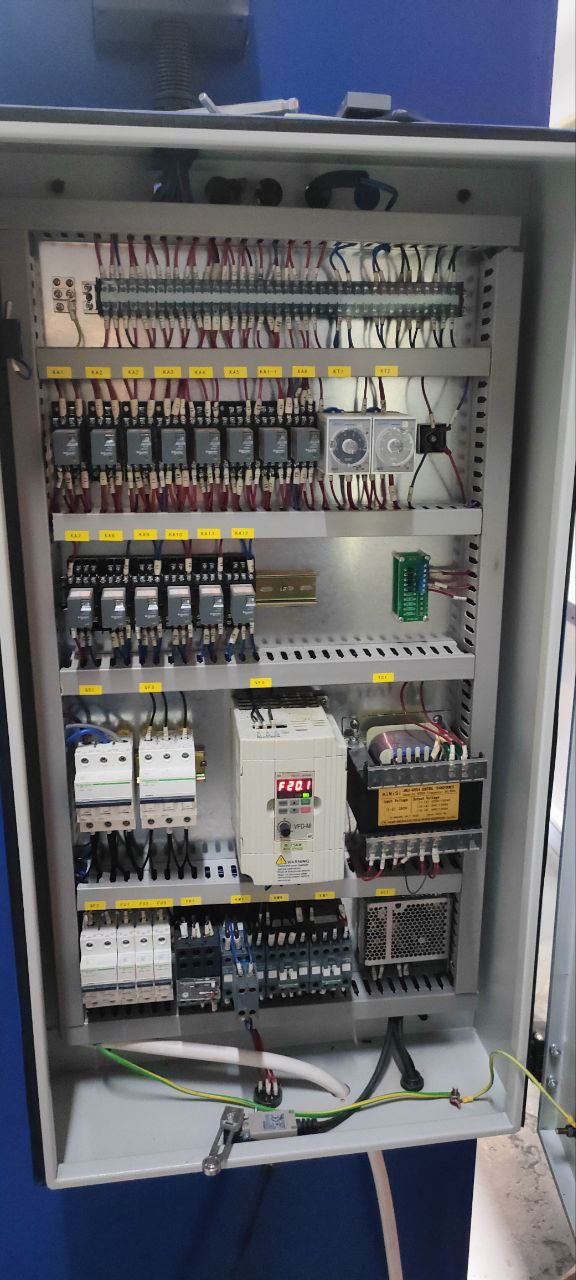

2. Main Electro parts ：Schneider - Germany
3. Motors ：Siemens - China (BEIDE BRAND)
4. Sealing ：NOK from Japan
5. Oil pumps ：From Shanghai.
6. Tooling ：From shanghai
7. Joint (fitting pipe) ：imported

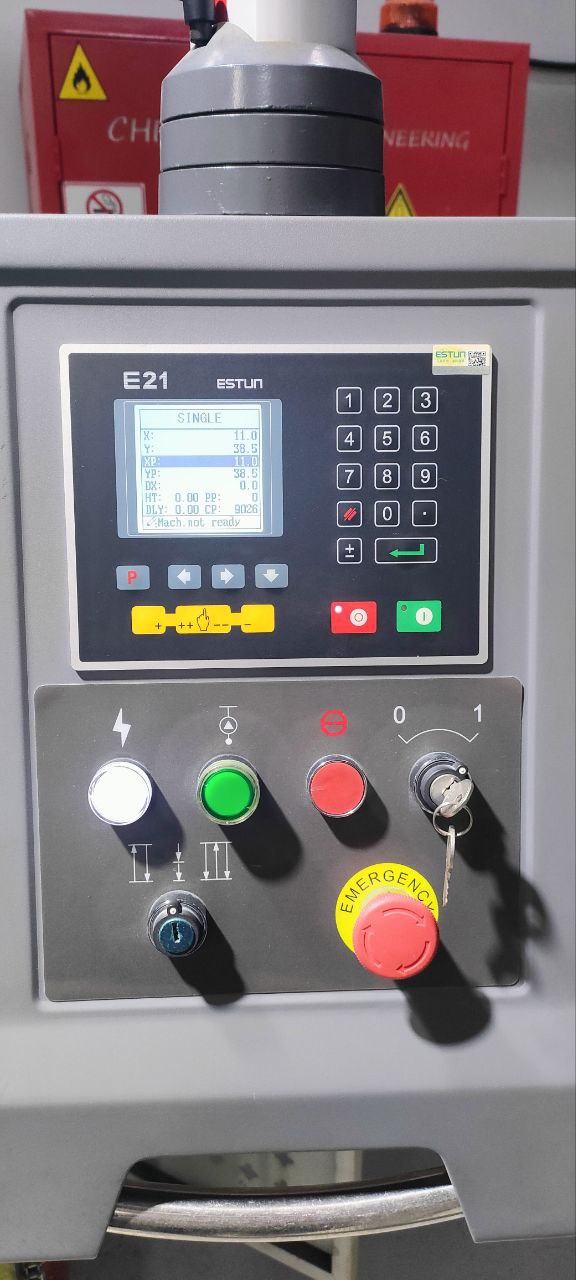

8. Operation system ：E21 ESTUN + Frequency Converter
9. Time Relay, Limit Switch : Schneider
Chip-Sleeve-Connection ( 200T)
10. Chinese Brans: Inverter & ball screw for back gauge, cooling fan
quick change clamping, standard upper & bottom tooling, side & back
protection, emergency stop
