Description

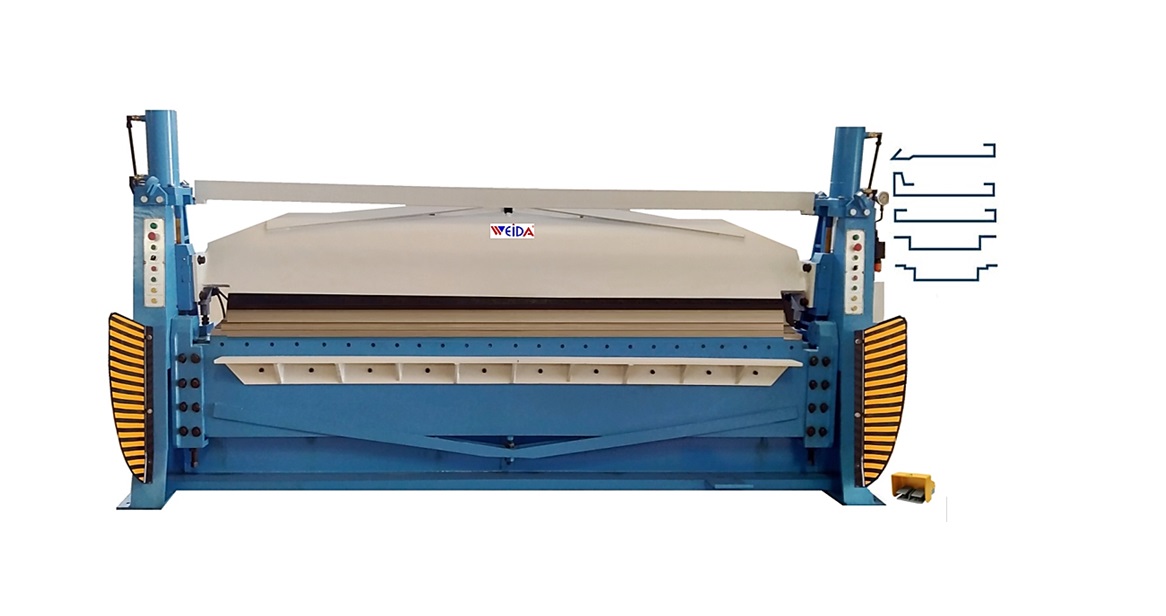

Hydraulic Folding Machine is a sheet metal folding machine that makes rectangular HVAC duct, metal furniture, hardware, metal enclosures etc. Hydraulic folder is steel plate welded, durable, easy to operate and low energy consumption. This Machine has a completely hydraulic operation. The machine is easy to maintain, blade segmented, which is suitable for disc type work piece. The upper blade's height is adjustable automatically; the working angle can be adjusted quickly.

TECHNICAL PARAMETER

HYDRAULIC FOLDER
Model No	: W62Y - 4 x 3100	W62Y - 4 x 2500
Brand Name	“WEIDA”
Folding Length	: 3100mm	: 2500mm
Folding Thickness	: 4mm	: 4mm
Evolving angle of the bending beam	: 110 o	: 110 o
Max. Lift of the upper beam	: 200mm	: 200mm
Mild Steel	: 0.5 ~ 4	: 0.5 ~ 4
Stainless Steel	: 0.5 ~ 2	: 0.5 ~ 2
Bend Angle	: 20 ~ 120	: 20 ~ 120
Upper blade forming angle	: 5/min	: 5/min
Upper blade forming movement	: 140mm	: 140mm
Flap Movement	: 10/min	: 10/min
Main Motor	: 5.5KW /50 Hz	: 4.5 KW
Power Supply	: 380v/220v	: 380v/220v
Weight	: 4390 Kg	: 4200Kg
Dimension (L x W x H)	: 3875 x 1250 x 2000mm	3350 x 1000 x 2000mm
