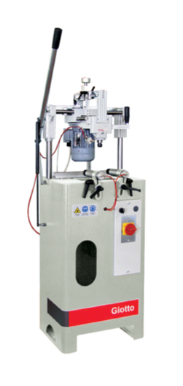

GIOTTO Manual Single Head Copy Router

Advertised on 08/06/2023

Ask the price

The GIOTTO Manual Single Head Copy Router is a specialized machine used for copying and shaping aluminum profiles or similar materials. Here are the features and specifications based on the information provided:

Single Head: The machine is equipped with a single cutting head for copying and shaping profiles.

Pneumatic Clamps: The machine features pneumatic clamps to securely hold the profiles during the routing process. These clamps provide stability and ensure accurate copying.

Lubrication System: The machine is equipped with a lubrication system, which helps to reduce friction and enhance the performance of the cutting tool.

Manual Tracer Point: The machine is equipped with one manual tracer point. This allows for precise copying of the profile shape onto the workpiece.

Working Capacities: The machine has the following working capacities: a maximum profile width of 200mm, a maximum profile height of 120mm, and a maximum profile depth of 110mm. These capacities determine the size and dimensions of the profiles that can be effectively copied.

Tool Speed: The cutting tool operates at a speed of 10,000 revolutions per minute (RPM). This high speed allows for efficient routing and shaping of the profiles.

Three-Phase Motor: The machine is powered by a three-phase motor with a power rating of 0.5 HP. This motor provides the necessary power for the cutting and copying operations.

The GIOTTO Manual Single Head Copy Router is designed for manual operation, offering precision and control in copying the shape of profiles. STANDARD EQUIPMENT

Collet D. 8mm

Pneumatic clamping set

Tracer point with 3 diameters: 5/8/10mm

Copy template for standard executions

Profile’s stop
