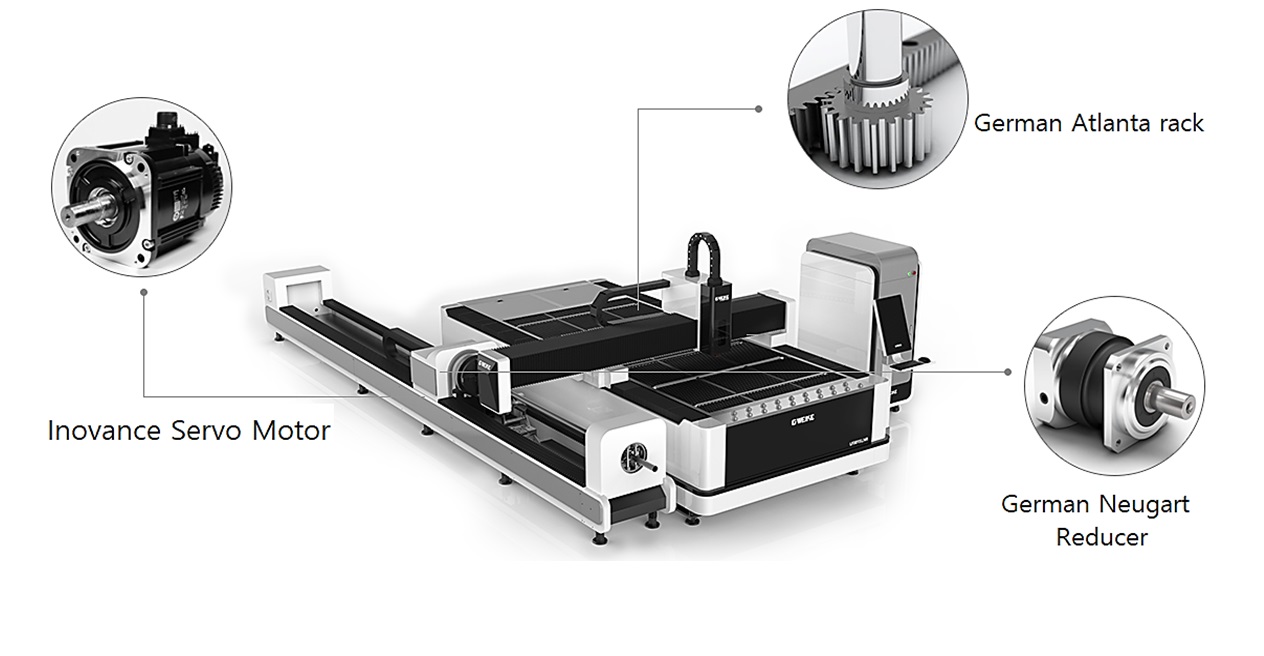

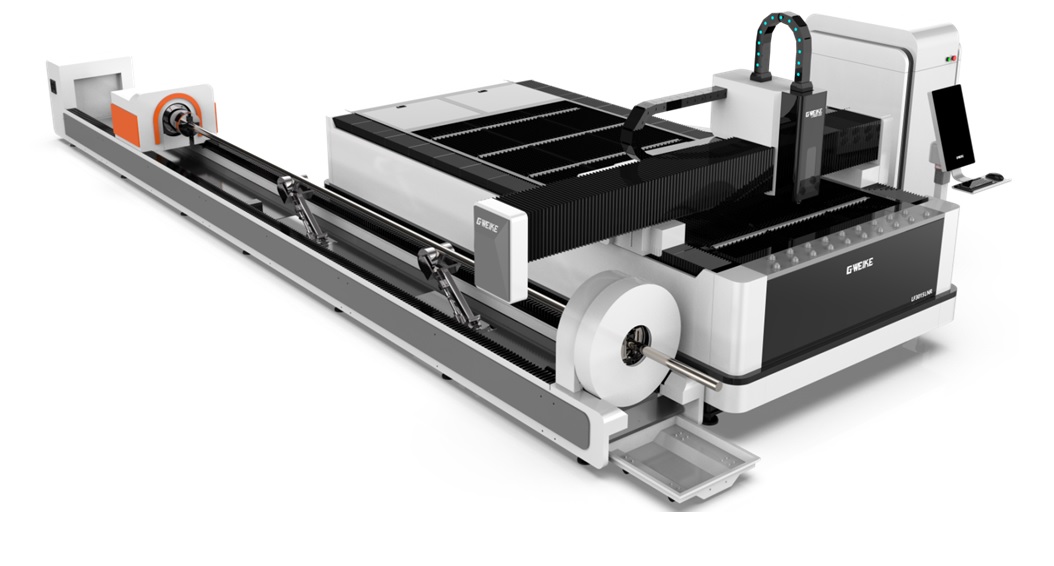

Name: FIBER LASER CUTTING MACHINE -LF3015LNR SERIES
Rating: 5 (5 reviews)

Processing Machine CNC

Advertised on 13/04/2023

Ask the price

Seller Informations

Contact Seller

Description

Laser Power	: 1500W,2000W,3000W,4000W(Optional)
Laser Source	: IPG / RAYCUS
X axis travel	: 1500mm
Y axis travel	: 3000mm
Z axis travel	: 300mm
X, Y, U axis Positioning accuracy	: ±0.02mm
X, Y, U axis Repeatable positioning accuracy	: ±0.03mm
X,Y Axis Max Moving speed	: 120m/min
X axis Maximum Acceleration	: 1.2G
Max size (mm)	: 6000x2450x1700mm
Pipe Cutting Diameter	: 20-220mm
Angle of rotation of W axis	: N*360
Maximum Rotary speed	: 80RPM
U axis max moving speed	: 40m/min
X, Y, U axis max cutting speed	: 30m/min
Specified voltage and frequency	: 380V/50Hz/60Hz/60A
Brand New	: China
