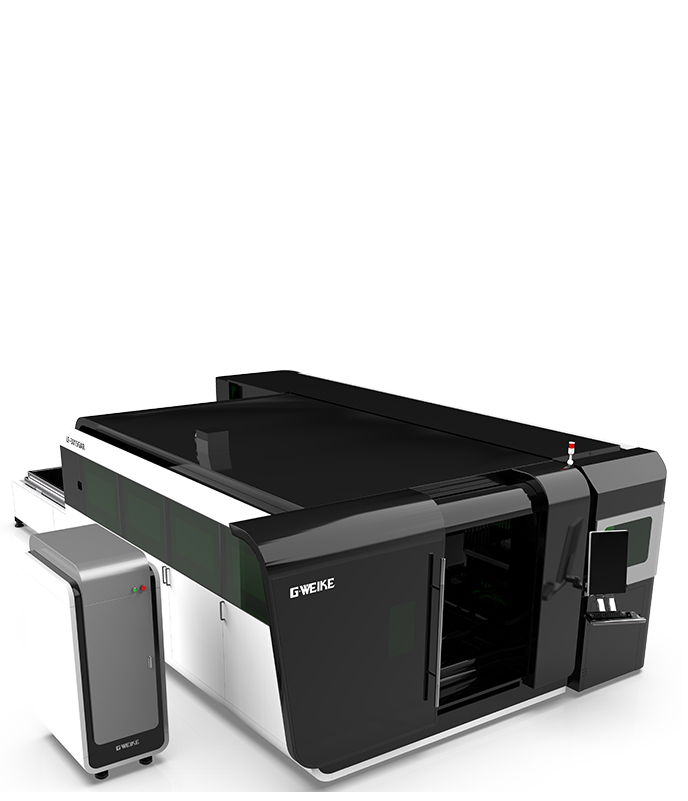

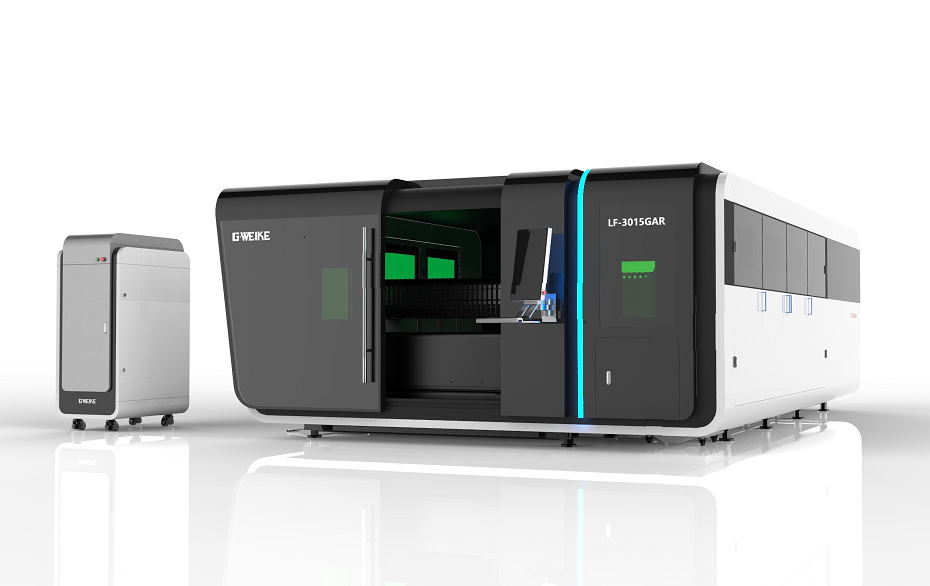

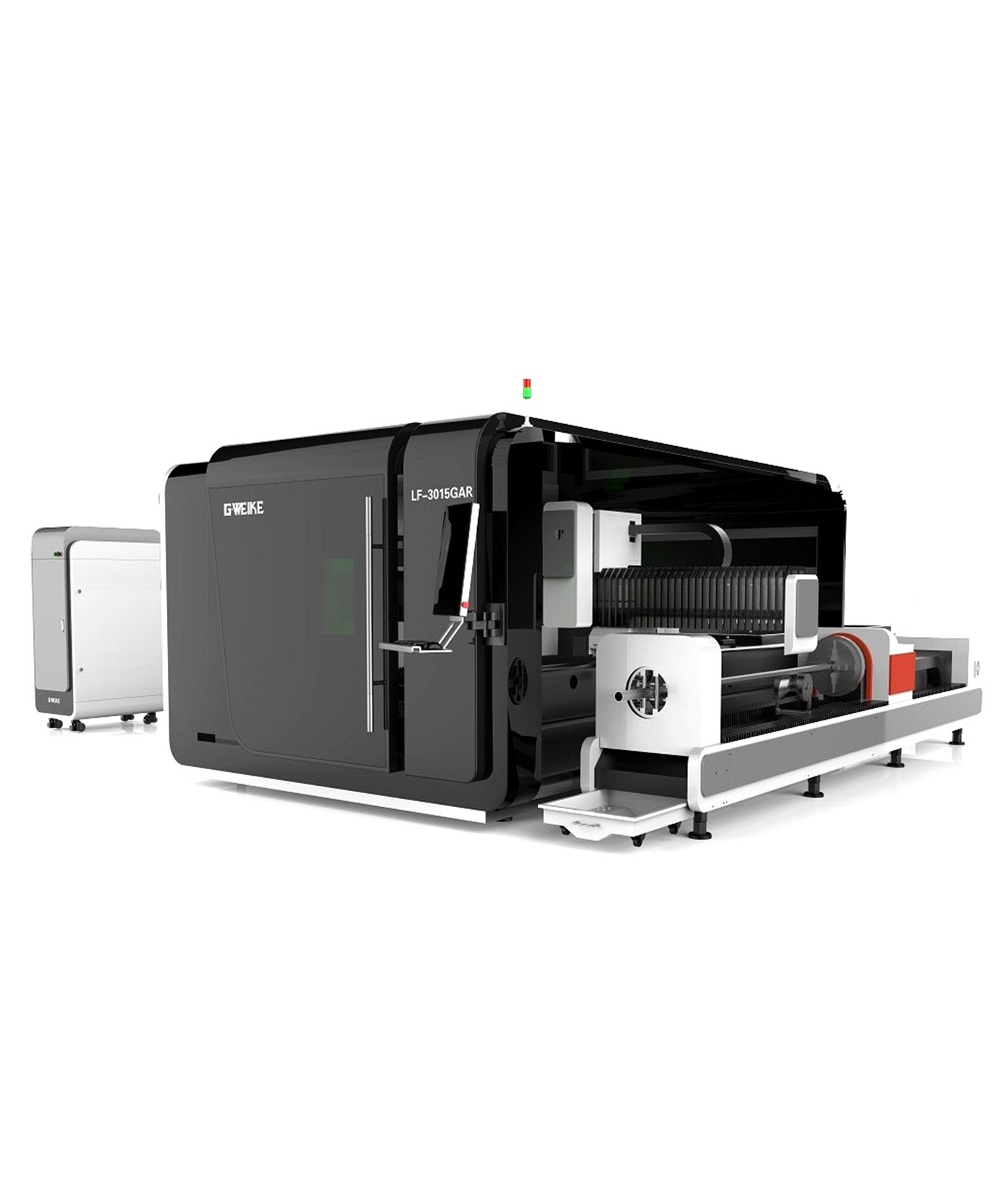

Name: FIBER LASER CUTTING MACHINE - LF3015GAR SERIES
Rating: 5 (5 reviews)

Processing Machine CNC

Advertised on 13/04/2023

Ask the price

Seller Informations

Contact Seller

Description

LASER POWER	: 1500W-12000W (Optional)
LASER SOURCE	: IPG / RAYCUS
Size	: 1500 x 3000, 2000 x 4000, 2500 x 6000 (Optional)
Z axis travel	: 300mm
X, Y, U axis Positioning accuracy	: ±0.02mm
X, Y, U axis Repeatable positioning accuracy	: ±0.03mm
X, Y axis Max moving speed	: 140m/min
X axis Max Acceleration	: 1.5G
Machine size (mm)	: 9500x3760x2520mm
Angle of rotation of W axis	: N*360
Pipe Cutting Diameter	: 20-220mm
U axis Max moving speed	: 40m/min
X, Y U axis max cutting speed	: 30m/min
Max Rotary Speed	: 80Rpm
Working platform load	: 1000kg
Specified voltage and frequency	: 380V/50Hz/60Hz/60A
Weight	: 8750kg
Brand New	: China
