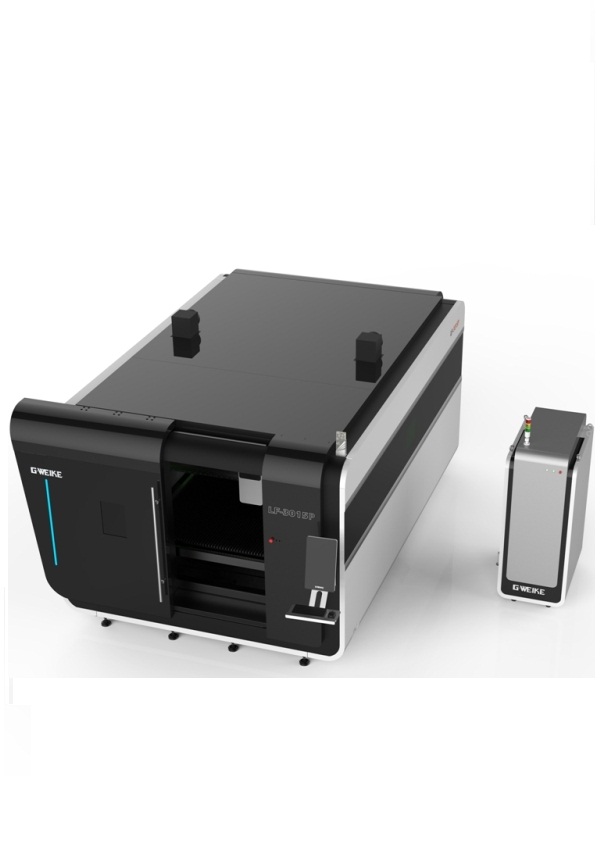

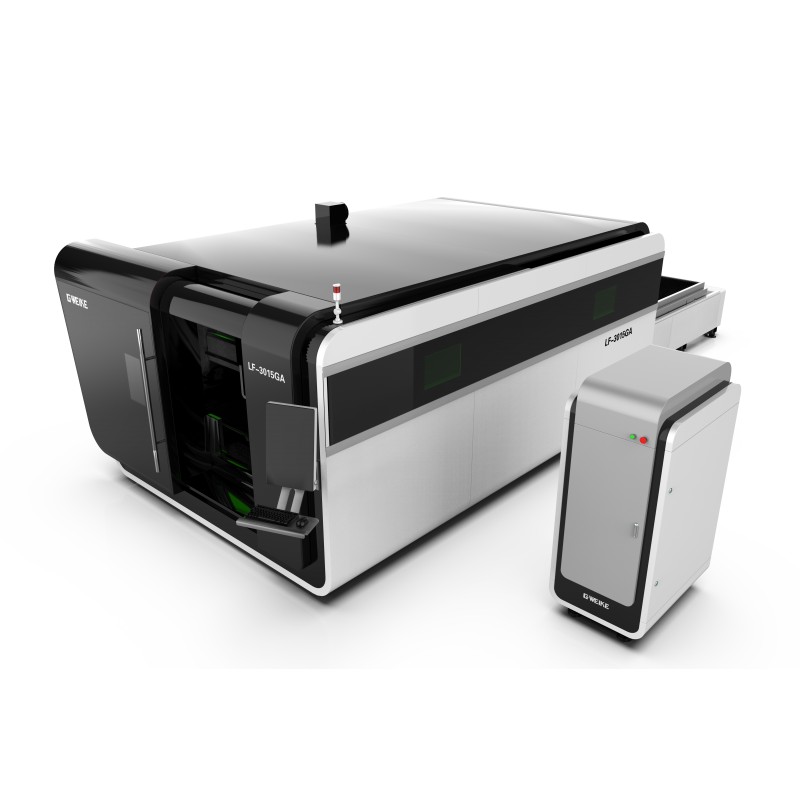

Name: FIBER LASER CUTTING MACHINE - LF3015GA SERIES
Rating: 5 (5 reviews)

Processing Machine CNC

Advertised on 13/04/2023

Ask the price

Seller Informations

Contact Seller

Description

LASER POWER	: 1500W-12000W (Optional)
LASER SOURCE	: IPG/ RAYCUS
Size	: 1500 x 3000 , 2000 x 4000, 2500 x 6000 (Optional)
X axis travel	: 1500mm
Y axis travel	: 3000mm
Z axis travel	: 300mm
X, Y, U axis Positioning accuracy	: ±0.02mm
X, Y, U axis Repeatable positioning accuracy	: ±0.03mm
X, Y axis Max moving speed	: 140m/min
X / Y Axis Maximum Cutting Speed	: 60m/min
X axis Max Acceleration	: 1.5G
Transmission Type	: Dual Drive Rack
Y-Axis Motor Power	: 1.8kw*2
Working Platform Exchange Time	: 15-17s
Guide Rail width	: 35mm
Working platform load	: 1000kg

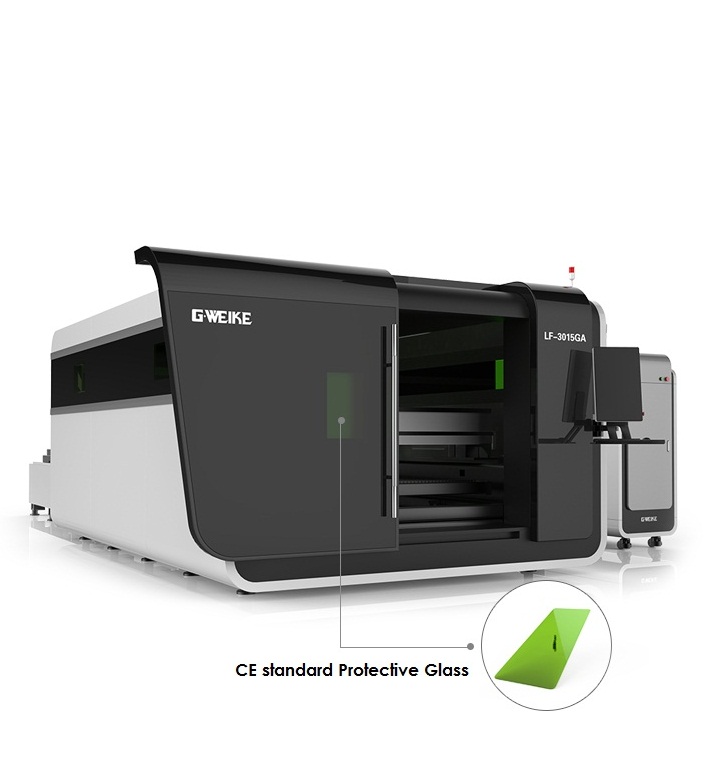

Enclosed Laser Protection	: Yes
Lubrication Type	: Automatic Oiling
Machine size (mm)	: 8850 x 2850 x 2310mm
Specified voltage and frequency	: 380V/50Hz/60Hz/60A
Weight	: 6600 kg.
Brand New	: China
