Exclusive Discounted Price 2025 Sinoboom AB15J Articulated Boom Lift

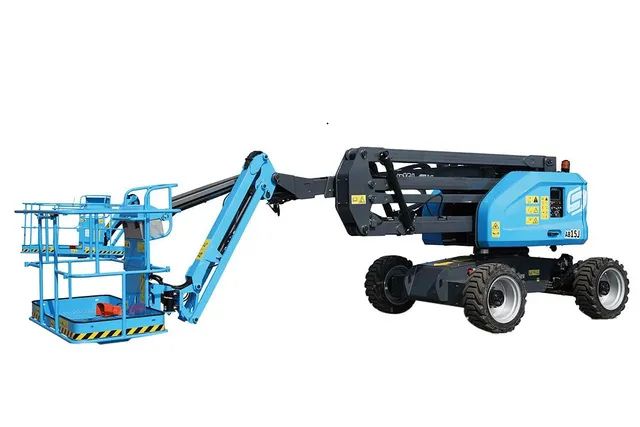

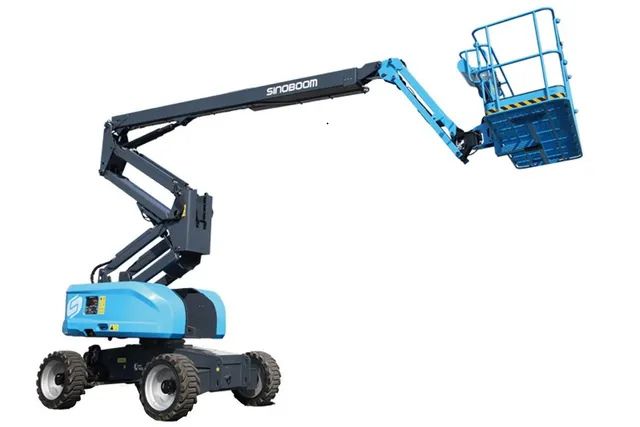

Built to handle demanding tasks with precision, the Sinoboom AB15J articulating boom lift reaches up to 16.7 meters in working height. Its narrow frame and zero tail sweep make it an excellent choice for maneuvering in confined areas. The lift allows vertical movement of the platform without needing to reposition the secondary boom arm. A user-friendly linkage design paired with hydraulic leveling ensures stability and dependable operation. Equipped with three joysticks offering variable proportional control, it delivers responsive, accurate movement. Designed for both indoor and outdoor use, the AB15J is a reliable solution for elevated work in construction, facility upkeep, and maintenance.

Highlights

• Ultra-Compact Wheelbase for Tight Spaces
• Fast, Responsive Height Adjustments
• Reliable for Continuous Lifting Operations

Technical specification

Reference Number: AMH209

Operating weight (kg): 7,080 Kg

Engine Output: 36 kW

Max Number of Operators: 2

Working Height: 16.7 m

Platform Capacity: 250 kg

Max Horizontal Extension: 8.5 m

Power: Diesel engine

Drive × Steer: 4WD × 2WS

Turntable Rotation: 355°/Non-Continuous

Platform Rotation: 160°

Gradeability: 40%

Features

• Narrow width with zero tail sweep
• Oscillating function
• 7-in display screen
• 4WD× 2WS
• Proportional control with 3 joysticks
• Automotive-grade sleeves for all pipes
• Hydraulic platform leveling
• Weighing system

Price: AED 203000

Request for quote: +971525384269
