Double Column Gantry Machining Center, Model GM-2015

Advertised on 24/05/2023

Ask the price

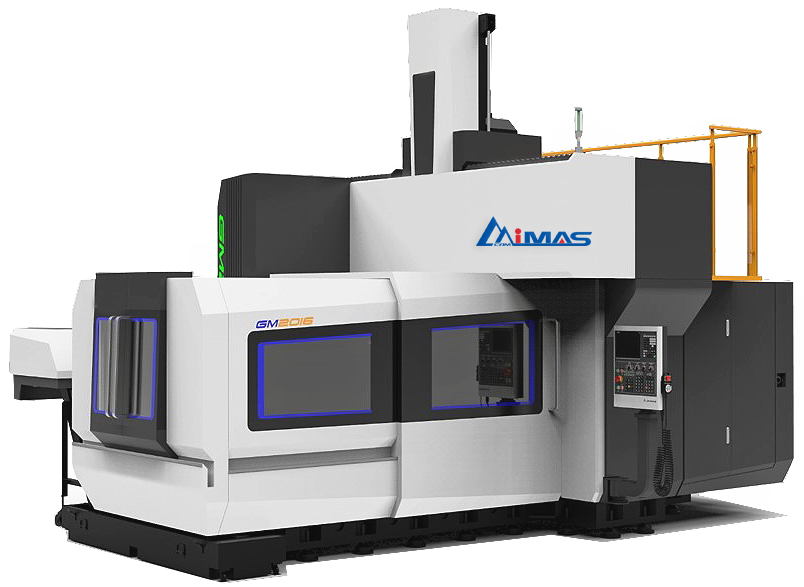

Double Column Gantry Machining Center

Model GM-2015

X/Y/Z axis travel (mm) 2000×1500×800

Table dimension (mm) 2000×1300

Max. table load (kg) 5000

Spindle speed (rpm) 6000

Positioning accuracy (mm) 0.018

Repeatability accuracy (mm) 0.012

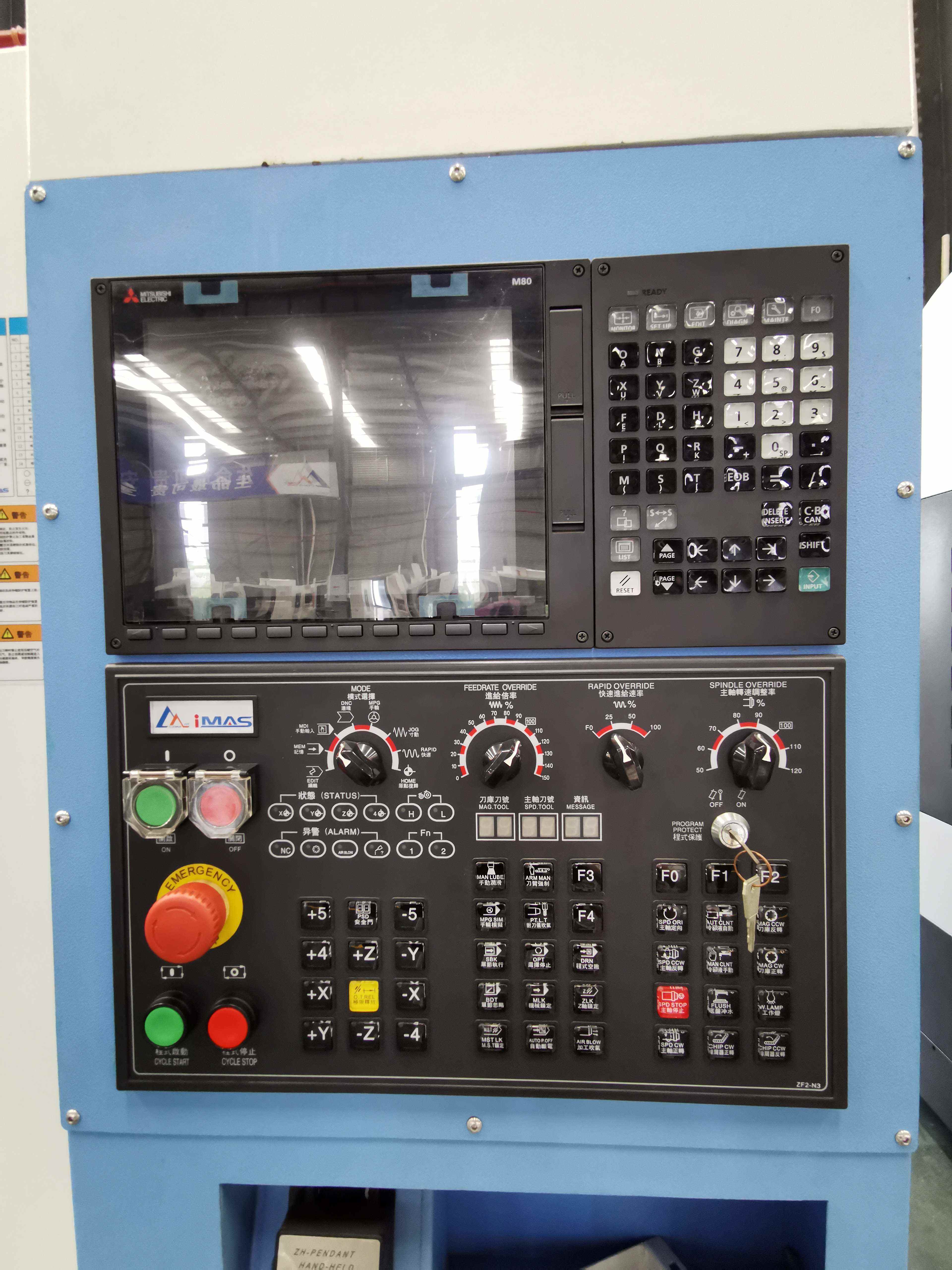

Control system Mitsubishi/Siemens/Fanuc/Syntec

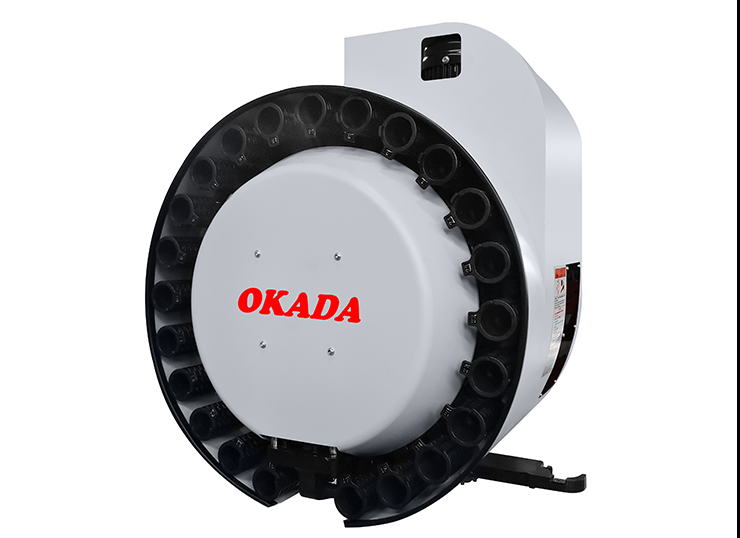

Tool magazine capacity 24pcs

Certification ISO9001

Machine Features

• Adopts the optimal design of high rigidity and stable structure.
• Rib reinforcement ensures high bending and torsional rigidity of the machine tool.
• The whole machine has good shock absorption, thermal stability, excellent structural rigidity and rigidity.
• Suitable for large, medium and small various types of parts/ mold/ casting/ steel structure processing.

Company Profile

Haixi(Fujian) institute, China Academy of Science & Technology Group was established in 2012 with the objective to meet the growing demand of quality CNC machining centers from Industrial, Automotive and Construction sectors.

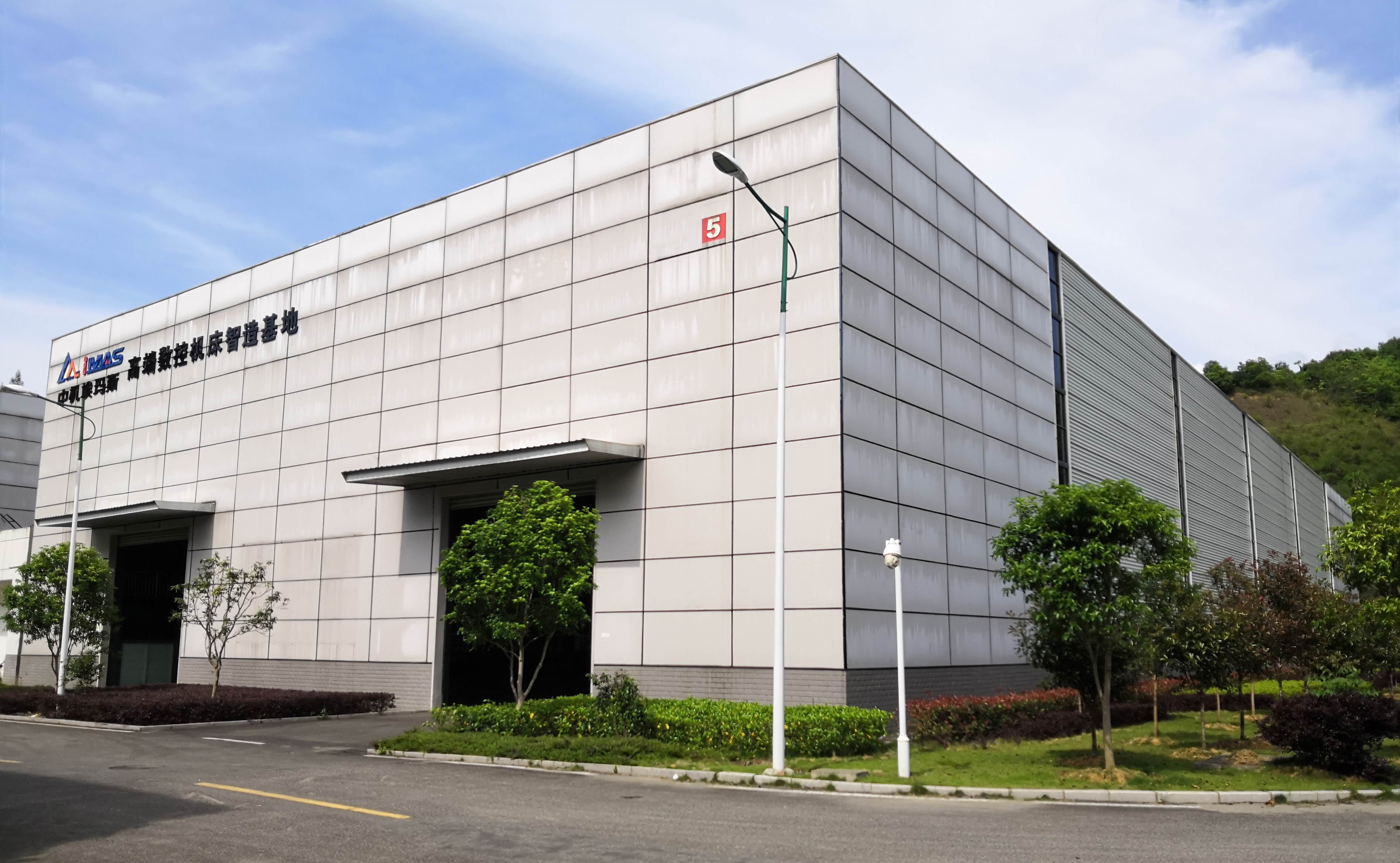

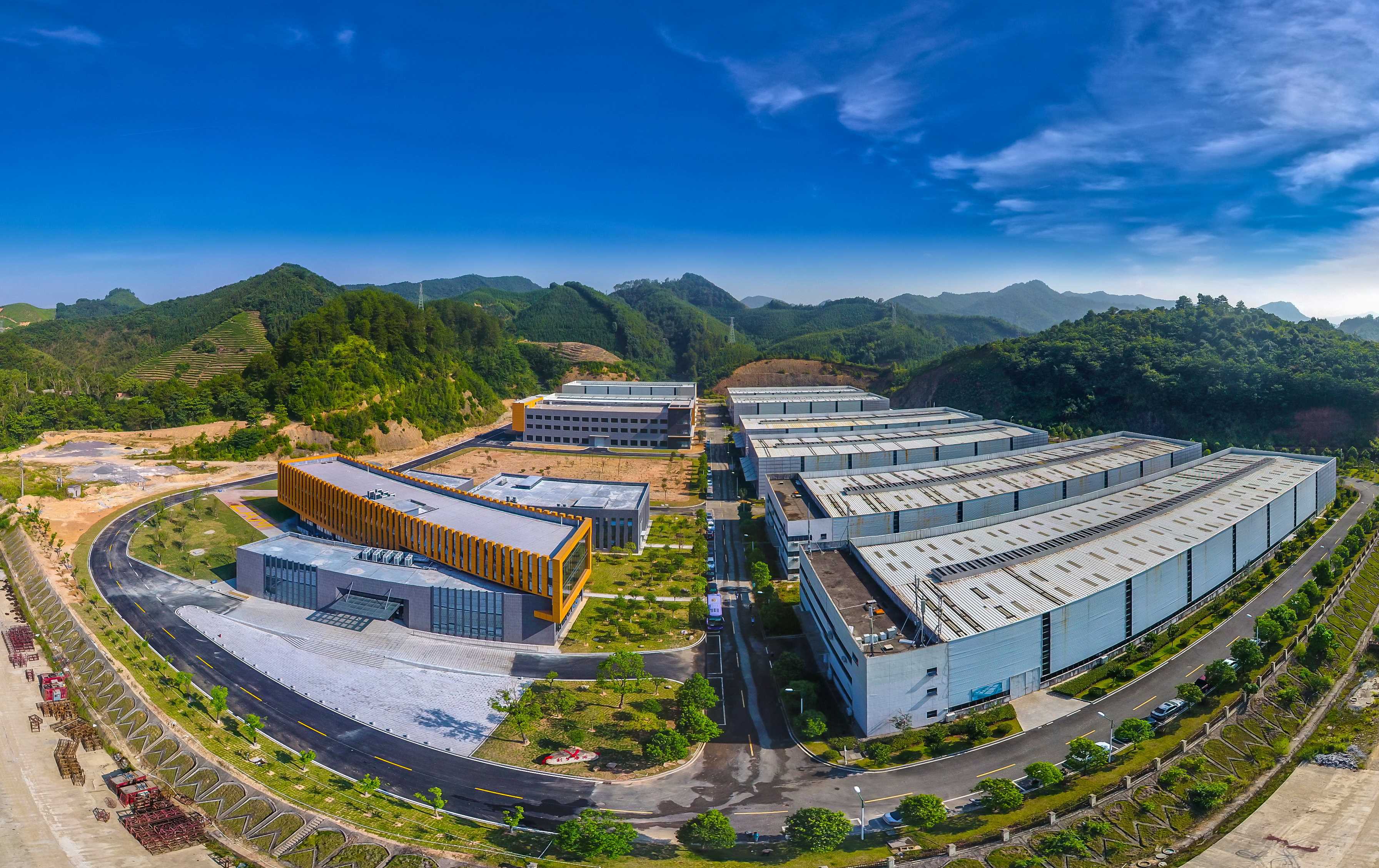

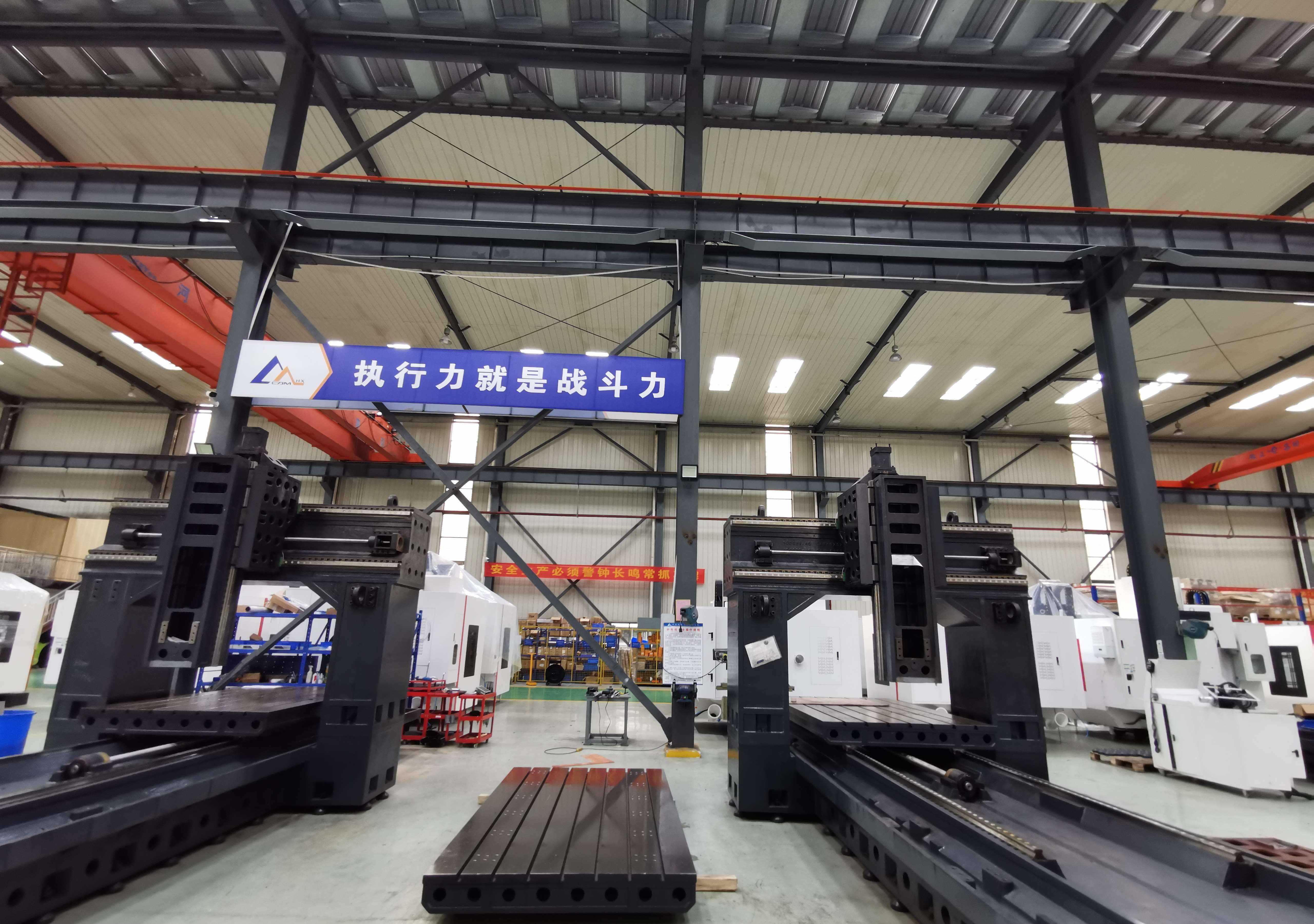

We are leader in manufacturing wide range of high precision CNC Machining Center (3-4-5Axes), CNC Horizontal Machining Center, Vertical Machining center, CNC Turning/Milling Center with ISO9001 standard. Our factory covers an area of about 15,000 square meters, with 5 workshops.

Our commitment is to supply advance technology of industrial machine in ensuring supreme satisfaction of our customers stepping into the new era of industry 4.0.

IMAS, Your Manufacturer of CNC Machining Centers.

Email: sales.imas2012@gmail.com

Whatsapp: +86 15859854109

Welcome Contact Us for More Details.
