Industrial machines

B2B Food Grade Cleaning System with Automation

---

Send Inquiry

Whatsapp with seller

Description

Product Overview

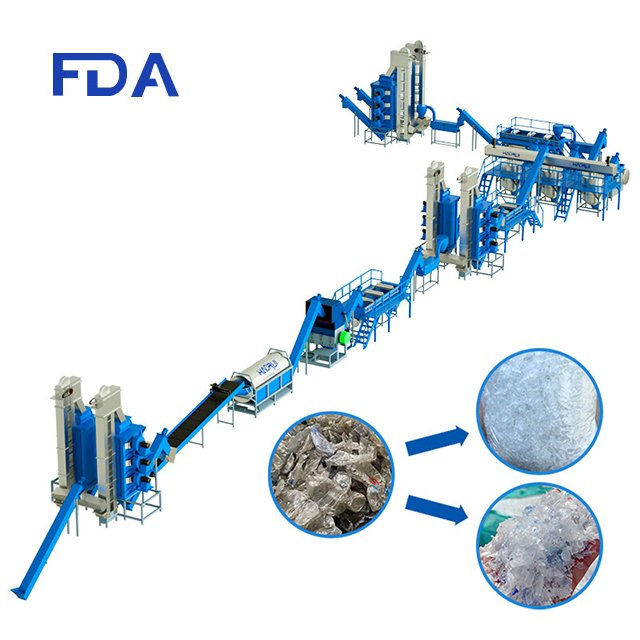

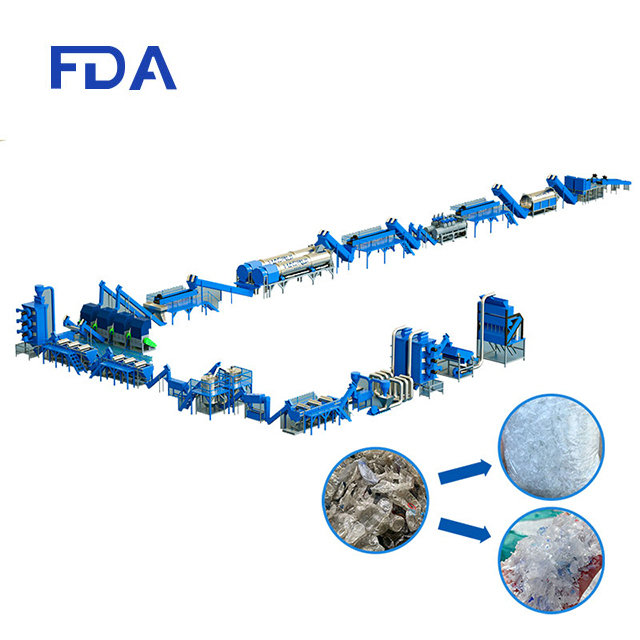

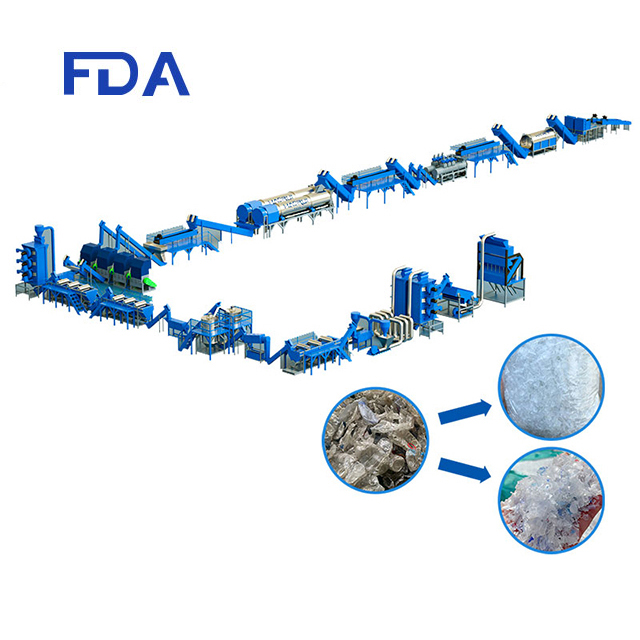

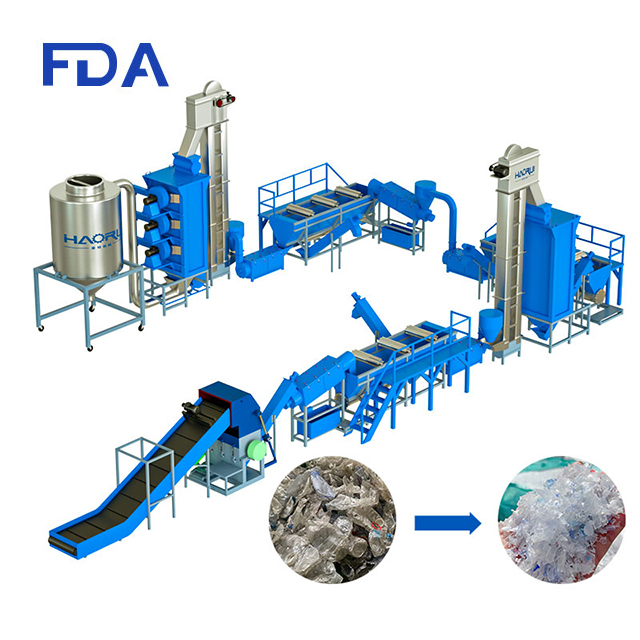

The automatic high-efficiency food grade pet bottle washing recycling line is an integrated recycling system designed to process post-consumer PET bottles and convert them into clean,high-quality PET flakes for reuse in plastic manufacturing.With configurable capacities from 500 to 6,000 kg/h,the line is suitable for small,medium,and large-scale plastic recycling operations.



The FDA approved rPET flakes washing line combines automated sorting,size reduction,hot and cold washing,friction cleaning,rinsing,dewatering,drying,and flake separation in one continuous production line.It is engineered for reliable operation,efficient contaminant removal,reduced water consumption,and consistent output quality.



When operated with appropriate process controls and validated materials,the food grade PET Bottle Washing Line can produce PET flakes suitable for demanding recycling applications,including fiber,strapping,sheet,thermoforming,and other downstream processes.Additional food-contact compliance requirements depend on the complete system design,decontamination process,input material,operating conditions,and applicable local regulations.



Key Features



1. Wide Processing Capacity



- Configurable throughput from 500 to 6,000 kg/h

- Modular equipment arrangement for different production requirements

- Suitable for startup facilities,commercial recycling plants,and high-volume industrial operations

- Capacity can be adjusted according to bottle contamination,moisture content,label percentage,and desired flake quality



2. Fully Automatic Operation



- Automatic feeding and conveying

- Integrated control of shredding,washing,rinsing,drying,and material transfer

- Central PLC control system with touchscreen interface

- Adjustable operating parameters for temperature,residence time,water flow,and motor speed

- Automatic overload,emergency-stop,and fault-protection functions

- Reduced labor requirements and improved production consistency



3. Efficient PET Bottle Processing



The FDA approved food grade PET bottle washing line is designed to process a wide range of post-consumer PET bottle waste,including:



- Beverage bottles

- Mineral water bottles

- Carbonated drink bottles

- Edible oil bottles

- Household PET containers

- Clear and colored PET packaging

- Baled or loose PET bottle scrap



The system can be configured to remove common contaminants such as caps,rings,labels,adhesives,dirt,sand,beverage residue,organic matter,and other lightweight plastics.



4. Food-Grade-Oriented Washing Process



The washing section can be configured to support high-purity PET flake production through multiple cleaning stages,including:



- Pre-washing

- Crushing or wet granulation

- Hot washing with controlled temperature and detergent

- High-speed friction washing

- Multi-stage rinsing

- Floating and sinking separation

- Mechanical dewatering

- Thermal or hot-air drying



This multi-stage process helps improve the cleanliness,purity,and appearance of the final PET flakes.For food-contact applications,the complete recycling process must be evaluated and approved according to the requirements of the target market and regulatory authority.



5. High-Efficiency Washing and Separation



- High-speed friction washers remove surface dirt and residual labels

- Hot washing helps loosen oil,grease,adhesives,and organic contamination

- Float-sink tanks separate PET from PP and PE bottle caps and closures

- Multiple rinsing stages reduce detergent and contaminant carryover

- Label and dust separation systems improve flake purity

- Optional optical sorting can further separate colors and non-PET materials



6. Durable Industrial Construction



- Heavy-duty carbon steel or stainless-steel construction,depending on the equipment section

- Wear-resistant components in high-friction areas

- Corrosion-resistant materials available for hot washing and rinsing equipment

- Reinforced shafts,bearings,blades,and screens for continuous operation

- Easy-access doors and inspection points for maintenance and cleaning



Typical PET Bottle Washing Process



A standard plant configuration may include the following stages:



1. Bale Breaker or Raw Material Feeding



Baled or loose PET bottles are introduced into the food grade PET bottle recycling line through a bale breaker,belt conveyor,or automatic feeding system.The feeding unit provides a steady and controlled material flow to the sorting section.



2. Manual or Automatic Pre-Sorting



Large contaminants,non-PET bottles,metal objects,heavily contaminated materials,and unwanted colors can be removed before crushing.Optional automatic sorting equipment can be installed for higher purity and improved labor efficiency.



3. Label and Cap Removal



A label separator removes loose labels and lightweight materials from the bottle stream.Depending on the configuration,caps and rings may be removed during the separation and washing stages.



4. PET Bottle Crushing



A heavy-duty PET crusher reduces whole bottles into uniform flakes.Consistent flake size improves washing efficiency,separation performance,and drying results.Screen size can be selected according to the required output specification.



5. Pre-Washing



The pre-washer removes loose dirt,sand,stones,beverage residues,and other surface contaminants before the material enters the intensive washing section.This helps reduce the contamination load and improves overall water and energy efficiency.



6. Hot Washing



The hot-washing tank in B2B food grade cleaning system uses heated water and,where required,an approved cleaning agent to remove difficult contaminants such as:



- Adhesive residue

- Oil and grease

- Beverage deposits

- Organic matter

- Fine dirt

- Surface coatings



Temperature,washing time,and detergent concentration can be adjusted according to the incoming material and final product requirements.



7. Friction Washing



A high-speed friction washer creates intensive mechanical cleaning action.The friction between the PET flakes,rotor,screen,and wash water helps remove stubborn dirt and residual labels.



8. Float-Sink Separation



The float-sink tank separates materials according to density:



- PET flakes generally sink

- PP and PE caps,rings,and floating plastics rise

- Lightweight contaminants can be skimmed and discharged



This stage is important for improving PET purity and reducing polyolefin contamination.



9. Rinsing



Clean-water rinsing removes residual detergent,suspended particles,and remaining contaminants.The FDA approved B2B PET bottle washing line may include single or multiple rinse tanks,depending on the required product quality and water-reuse system.

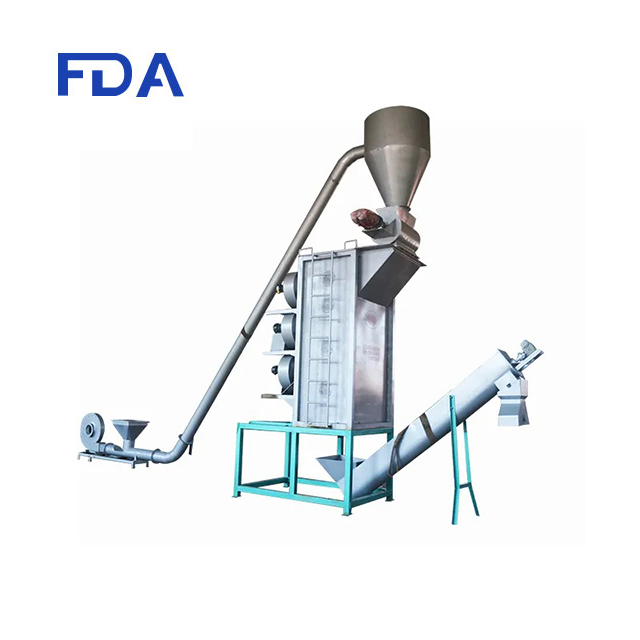

10. Dewatering and Drying



A centrifugal dewatering machine removes most surface moisture from the PET flakes.Thermal drying,hot-air drying can then reduce the final moisture content to the required level.



11. Air Separation and Flake Collection



An air classifier separates dust,labels,and lightweight particles from the PET flakes.The cleaned flakes are then conveyed to storage silos,big bags,or an automatic packing system.



12. Optional Color and Quality Sorting



For applications requiring higher purity,the food grade B2B PET bottle washing line can be equipped with:



- Optical color sorters

- Near-infrared material sorters

- Metal detectors

- Final flake inspection systems

- Automated packing and weighing equipment



Main Equipment Configuration



A complete food safe b2b recycling line may include:



- Bale opener or bale breaker

- Infeed conveyor

- Trommel or pre-screening machine

- Manual sorting conveyor

- Label remover

- Metal separator

- PET bottle crusher

- Pre-washing machine

- Hot-washing tank

- High-speed friction washer

- Float-sink separation tank

- Screw conveyors

- Centrifugal dewatering machine

- Hot-air or thermal dryer

- Zigzag air separator

- Dust collection system

- Water filtration and recycling system

- Electrical control cabinet

- PLC and touchscreen control panel

- Flake storage hopper or silo

- Automatic weighing and packing system

- Optional optical sorting equipment



The final configuration can be customized according to raw material quality,bottle color mix,local utility conditions,target flake specifications,and available installation space.



Typical Output



The finished product is washed and dried PET flake intended for further processing into:



- Polyester staple fiber

- Filament yarn

- PET strapping

- Recycled PET sheet

- Thermoformed products

- Injection-molded components

- Non-food packaging applications

- Pelletizing and extrusion applications



Output quality depends on the type and condition of the feedstock,sorting performance,washing temperature,detergent selection,water quality,process settings,and maintenance practices.



Efficiency and Environmental Benefits



Reduced Water Consumption



A water circulation and filtration system can be integrated to reuse process water,reduce fresh-water demand,and lower operating costs.



Lower Energy Use



High-efficiency motors,optimized material conveying,insulated hot-washing tanks,and heat-recovery options help reduce energy consumption.



Reduced Manual Labor



Automated feeding,conveying,washing,drying,and control systems minimize operator intervention and support stable production.



Improved Material Recovery



The FDA approved food grade PET bottle recycling machine is designed to recover valuable PET material from post-consumer waste while separating caps,labels,metals,and other unwanted materials for appropriate handling.



Controlled Wastewater Management



Optional wastewater treatment systems can be added to remove suspended solids,oils,detergents,and other contaminants before reuse or discharge.



Product Advantages



- Processing capacity from 500 to 6,000 kg/h

- Complete PET bottle recycling solution

- High-efficiency hot and cold washing technology

- Improved removal of labels,glue,dirt,and organic contamination

- Automatic PLC-based operation

- Adjustable configuration for different feedstock conditions

- Suitable for clear,light-blue,green,and mixed-color PET bottles

- Modular design for easier installation and future expansion

- Durable components for continuous industrial operation

- Optional water-treatment,optical-sorting,and automatic-packing systems

- Suitable for producing clean PET flakes for a variety of recycling applications



Recommended Operating Considerations



For stable performance and high-quality output,the food safe PET bottle recycling machine should be designed based on:



- Expected raw material composition

- PET bottle color ratio

- Label and adhesive type

- Contamination level

- Required flake size

- Target moisture content

- Required final purity

- Available electricity and water supply

- Local wastewater-discharge requirements

- Desired operating schedule and annual production volume



A raw-material sample test is recommended before finalizing equipment selection and process parameters.



Applications



This FDA approved rPET bottle washing machine is suitable for:



- Plastic recycling companies

- Municipal recycling facilities

- Post-consumer packaging recovery plants

- PET flake manufacturers

- Fiber and textile material suppliers

- Plastic waste management companies

- Packaging-material producers

- Industrial recycling and resource-recovery operations



Conclusion



The automatic high-efficiency 500–6,000 kg/h food safe PET bottle washing machine provides a scalable and automated solution for converting discarded PET bottles into clean,reusable flakes.Its integrated crushing,hot-washing,friction-washing,separation,rinsing,dewatering,and drying processes help improve material quality while reducing labor,water consumption,and operating costs.



With customizable capacity,optional advanced sorting,and food-grade-oriented processing capabilities,the food safe B2B recycling machine can be configured to meet the requirements of a wide range of PET recycling operations.
