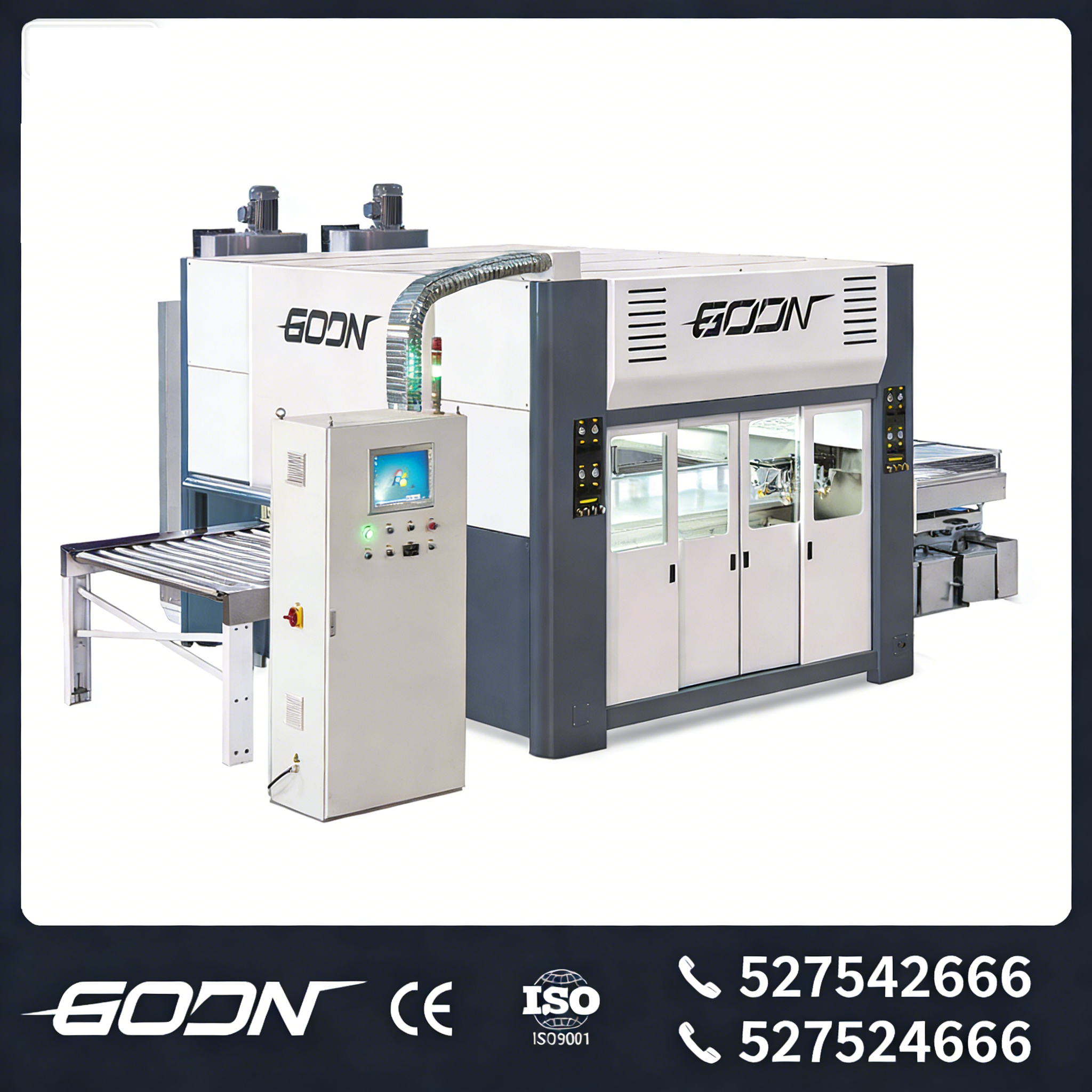

Automatic Spraying Machine SPM1300UV

Advertised on 23/01/2026

Ask the price

       Advantages:

1. Suitable for surface and side spray of furniture panels, doors etc.
2. Adopt SCANNER to detect shape and size of the workpiece, to ensure precise spraying.
3. Recycle & clean system can efficiently clean the belt and recycle the paint on the belt.
4. Special feeding belt is more corrosion resistance and easy to clean.
5. Excellent air pressure and exhaust system with wind frequency adjustable to ensure the air matching in the spraying room. Second filter system ensure the room dustless.
6. With special meter to display the situation of the filter. So the filter can be changed or cleaned in time.
7. Double high pressure paint recycle design .

   Model	Unite	SPM1300UV
   Max. spraying width	mm	1300
   Max.working thickness	mm	50mm(single side) 80mm(double side)
   Max. feeding speed	m/min	5.2
   Max. spraying gun	pcs	8
   Gun reciprocate speed	m/min	0-100
   Working pressure	Mpa	0.5-0.8
   Total power	kw	12
   Overall dimension	mm	5600*5440*2540
   Weight	kgs	4300
   Model	Unite	SPM1300UV-H
   Max. spraying width	mm	1300
   Max.working thickness	mm	50mm(single side) 80mm(double side)
   Max. feeding speed	m/min	5.2
   Max. spraying gun	pcs	8
   Gun reciprocate speed	m/min	0-100
   Working pressure	Mpa	0.5-0.8
   Total power	kw	12
   Overall dimension	mm	5600*5440*2540
   Weight	kgs	4300
