Description

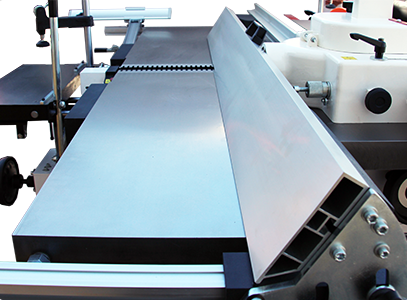

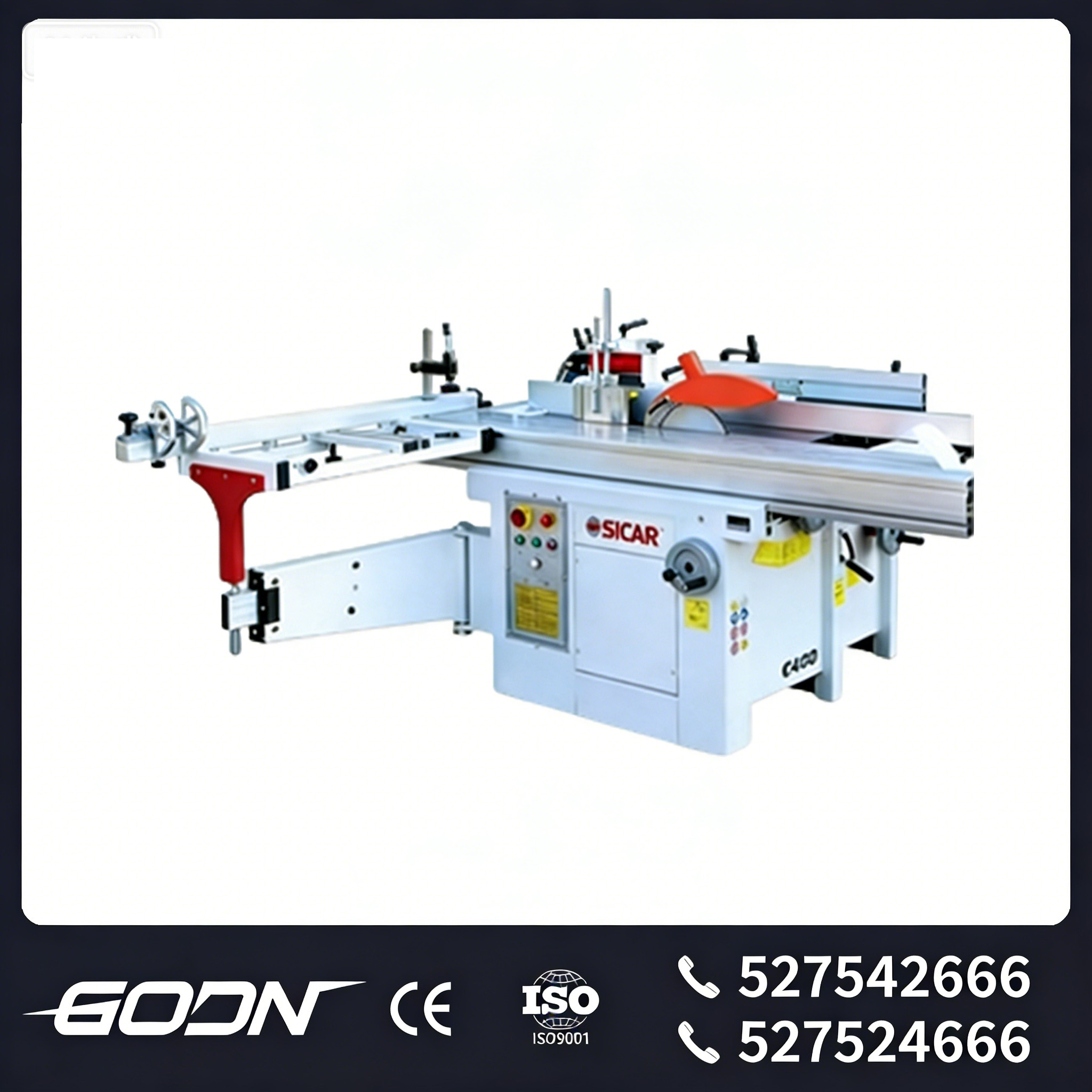

The 400C Combined Machine has been specifically designed be an industrial standard machine, but at a size intended for the factory and small professional workshop. This industrially rated machine features a planer, thicknesser and mottiser unit. The cast iron construction, accurate cross cut fence and superb build quality put this machine in a class of its own.

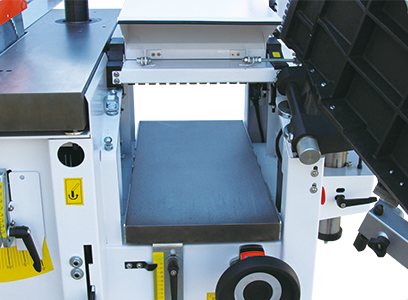

The planer thicknessing function, again is of the highest quality, extremely powerful, accurate and the end result is simply sublime. The inward swing of the thicknessing unit keeps this machine compact in every function,whilst the cast iron construction means even heavy pieces can be handled confidently.

Several further options are also available, each machine can therefore be tailored to the users specific needs.

Planer	Unit	C400
Working tables	mm	400x1800
Cutterblock diameter	mm	70
Cutterblock rotation speed	r.p.m	5700
N. of knives	n°	3
knives dimensions	mm	400x20x3(400x25x3)
Max table adjustement	mm	4

Thicknesser	Unit	C400
Working table	mm	400x760
Feed speed	m/1'	7
Max. working height	mm	220
Min. working height	mm	4
Cutterblock rotation speed	r.p.m.	5700
Max. cutting depth	mm	4

Mortiser	Unit	C400
Working table	mm	250x500
Longitudinal stroke	mm	205
Trasversal stroke	mm	95
Vertical stroke	mm	90
Churck	mm	16
Churck rotation speed	r.p.m.	5700

Circular saw	Unit	C400
Working table	mm	326x1112
Shaft rotation speed	r.p.m.	4500
Blade diameter	mm	300
Blade bora diameter	mm	30
Cutting height 90°	mm	100
Max. distance between blade and fence	mm	730
Blade inclination	0°	45°
Max cutting height 45°	mm	50
Shaft rotation speed engraver	r.p.m.	7000
Engraver blade diameter	mm	90
Engraver blade bora diameter	mm	22

Shaper	Unit	C400
Working tables	mm	326x1112
Shaft rotation speeds	r.p.m.	2000/3100/4400/7000
Standard shaft diameter	mm	30
Spindle lenght	mm	105
Shaft vertical stroke	mm	115
Max. tool diameter	mm	180
Max. tenoning depth	mm	65

Tenoning carriage	Unit	C400
Carriage dimensions	mm	1800x315
Carriage stroke	mm	1800/2200

Standard accessories	Unit	C400
Table extensions with swinging arms	mm	860x600
3-phase motor power	HP - KW	4,0 - 3,0
Weight	kg	645
