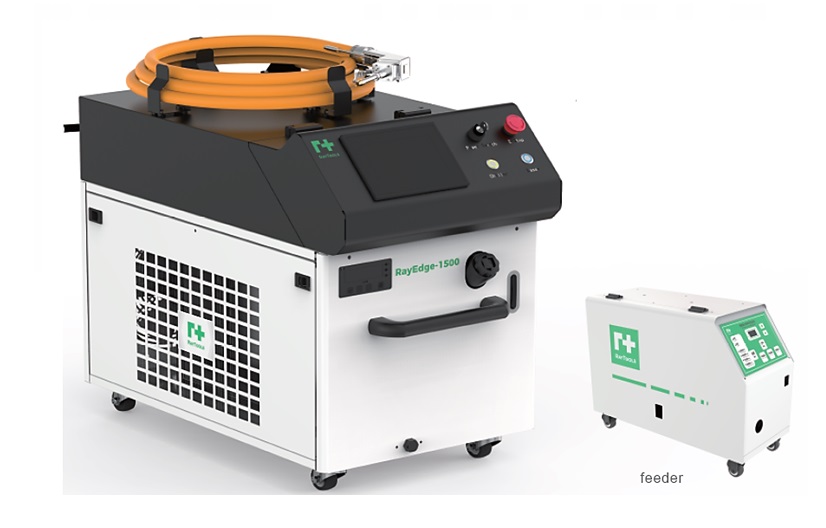

Name: 4-in-1 HANDHELD LASER WELDING MACHINE - RAYEDGE
Rating: 5 (5 reviews)

Processing Machine CNC

Advertised on 08/05/2023

Ask the price

Seller Informations

Contact Seller

Description

MODEL		: RayEdge-1500W/2000W/3000W(Optional)
LASER POWER		: 1500W	: 2000W	: 3000W
LASER SOURCE		: 1500W MaxPhotonics	: 2000W MaxPhotonics	: 3000W MaxPhotonics
Laser wavelength		: 1080 mm	: 1080 mm	: 1080 mm
Fiber length		: 10 m	: 10 m	: 20 m
Fiber core		: 50 um	: 50 um	: 50 um
Welding speed		: 0-20 mm/s	: 0-20 mm/s	: 0-20 mm/s
Welding style		: Wobble (Single Axis)	: Wobble (Single Axis)	: Wobble (Single Axis)
Wobbling Range	Weld	: 0 – 5 mm	: 0 – 5 mm	: 0 – 5 mm
	Weld Seam Clean	: 0 -10 mm	: 0 -10 mm	: 0 -10 mm
	Remote Clean	: 0 - 80 mm	: 0 - 80 mm	: 0 - 80 mm
Welding seam width		: Max 3 mm	: 5 mm	: 5 mm
Welding Thickness		: Max 3 mm (SS, MS) 2mm AL based on 1500W Laser (MS & SS 3 Series Feeder Wire & Al 5 Series Feeder Wire)	: Max 4mm (SS, MS) 3mm AL based on 2000W Laser (MS & SS 3 Series Feeder Wire & Al 5 Series Feeder Wire) Laser	: Max 6mm (SS, MS) 4mm AL based on 3000W Laser (MS & SS 3 Series Feeder Wire & Al 5 Series Feeder Wire) Laser
Cooling		: Water cooling	: Water cooling	: Water cooling
Cover glass		: Ø20mm *3mm	: Ø20mm *3mm	: Ø20mm *3mm
Collimation Length		: 60mm	: 60mm	: 60mm
Focus Length		: 150mm	: 150mm	: 150mm
Power Supply		:220V/Single Phase/50/60 Hz	:220V/Single Phase/50/60 Hz	:320V/3-Phase/50/60 Hz
