3 Axis Horizontal Machining Centre, Model HM-630

Advertised on 24/05/2023

Ask the price

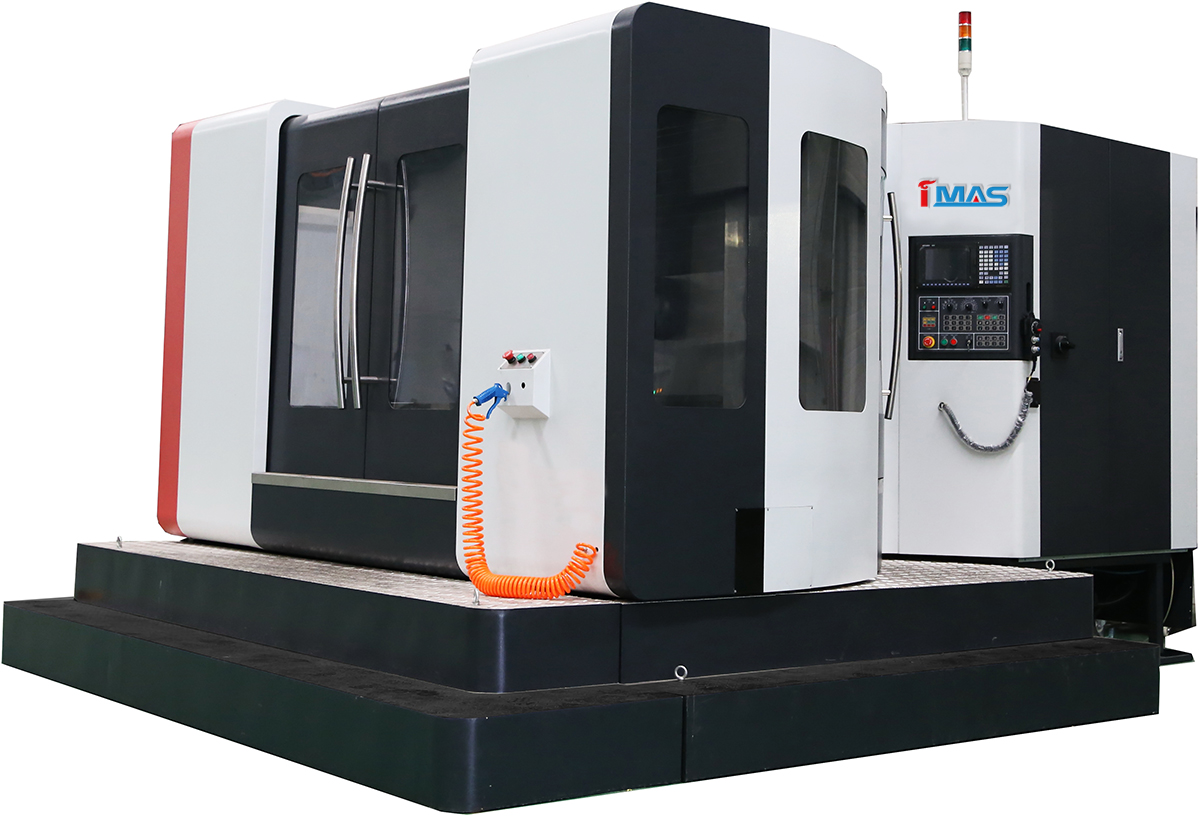

3 Axis Horizontal Machining Centre

Model HM-630

X/Y/Z axis travel (mm) 1000×850×900

Table dimension (mm) 630×630

Max. table load (kg) 1200

Spindle speed (rpm) 6000

Positioning accuracy (mm) 0.01

Repeatability accuracy (mm) 0.006

Certification  ISO9001

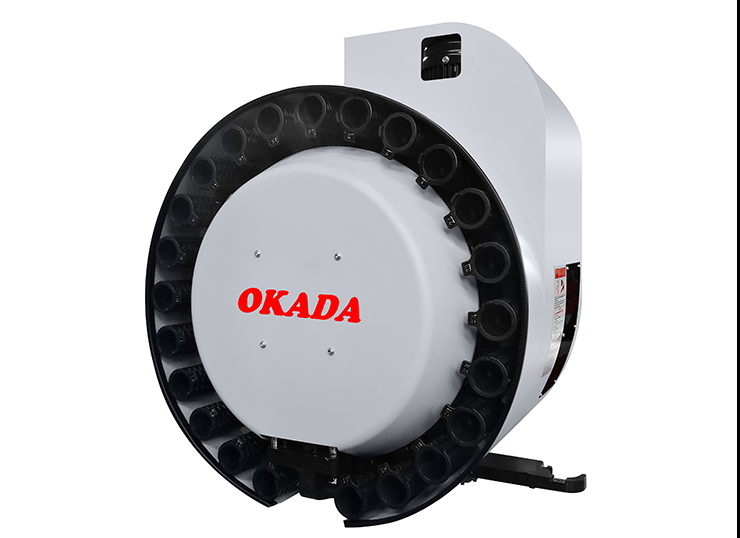

Tool magazine capacity  24pcs

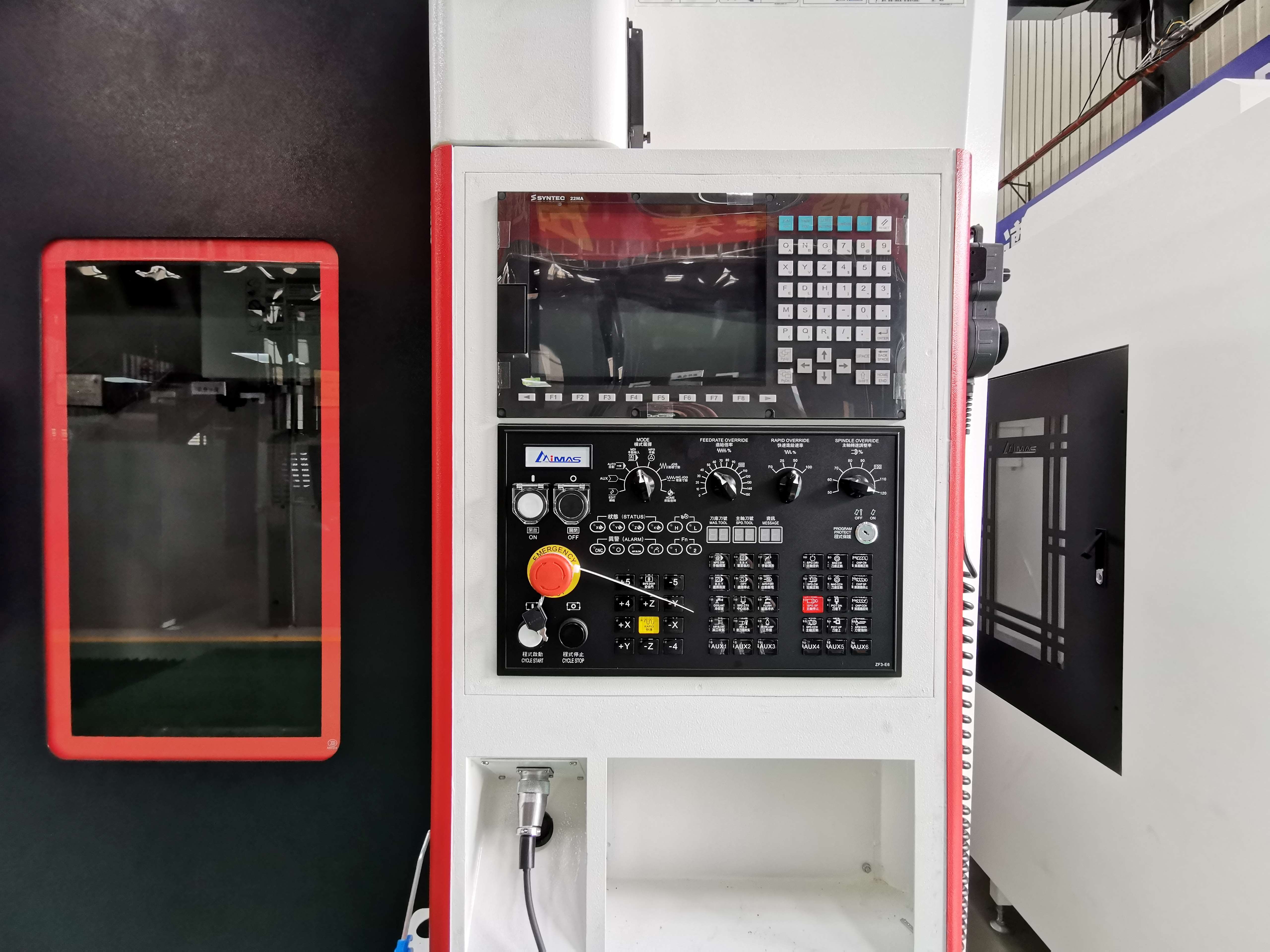

Control system  Mitsubishi/ Siemens/ Fanuc/ Syntec

Machine Features

• The base adopts a positive "T" layout, the overall structure is highly rigid.
• Moving column design, high-tensile high-strength castings, full-support design for guide rails of each axis.
• Precise positioning during column, table, spindle movement. Fast, simple, reliable and long-life tool exchange device.
• High efficiency chip removal design, improves the efficiency of the machine tool and reduces downtime

Comapny Profile

Haixi(Fujian) institute, China Academy of Science & Technology Group was established in 2012 with the objective to meet the growing demand of quality CNC machining centers from Industrial, Automotive and Construction sectors.

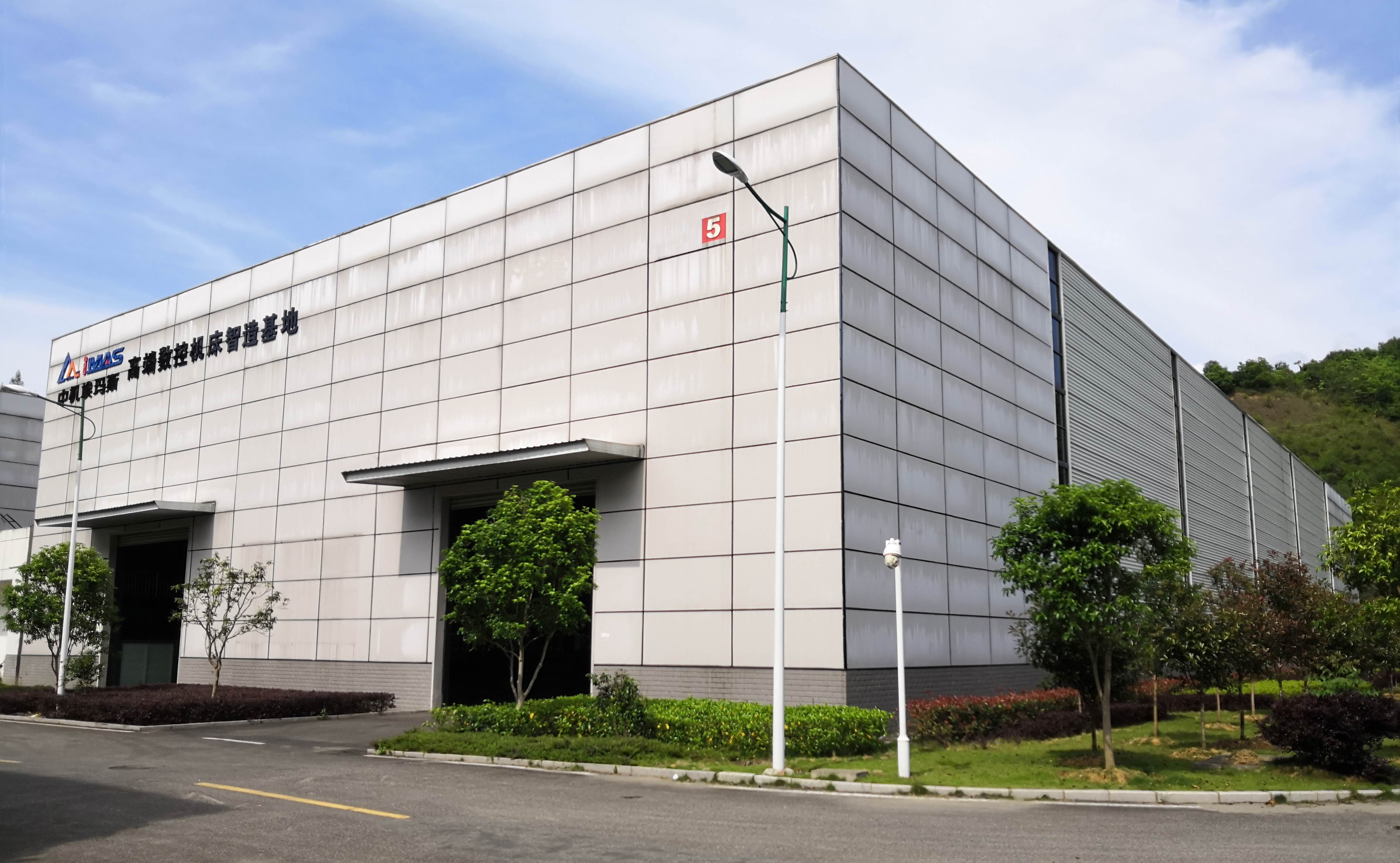

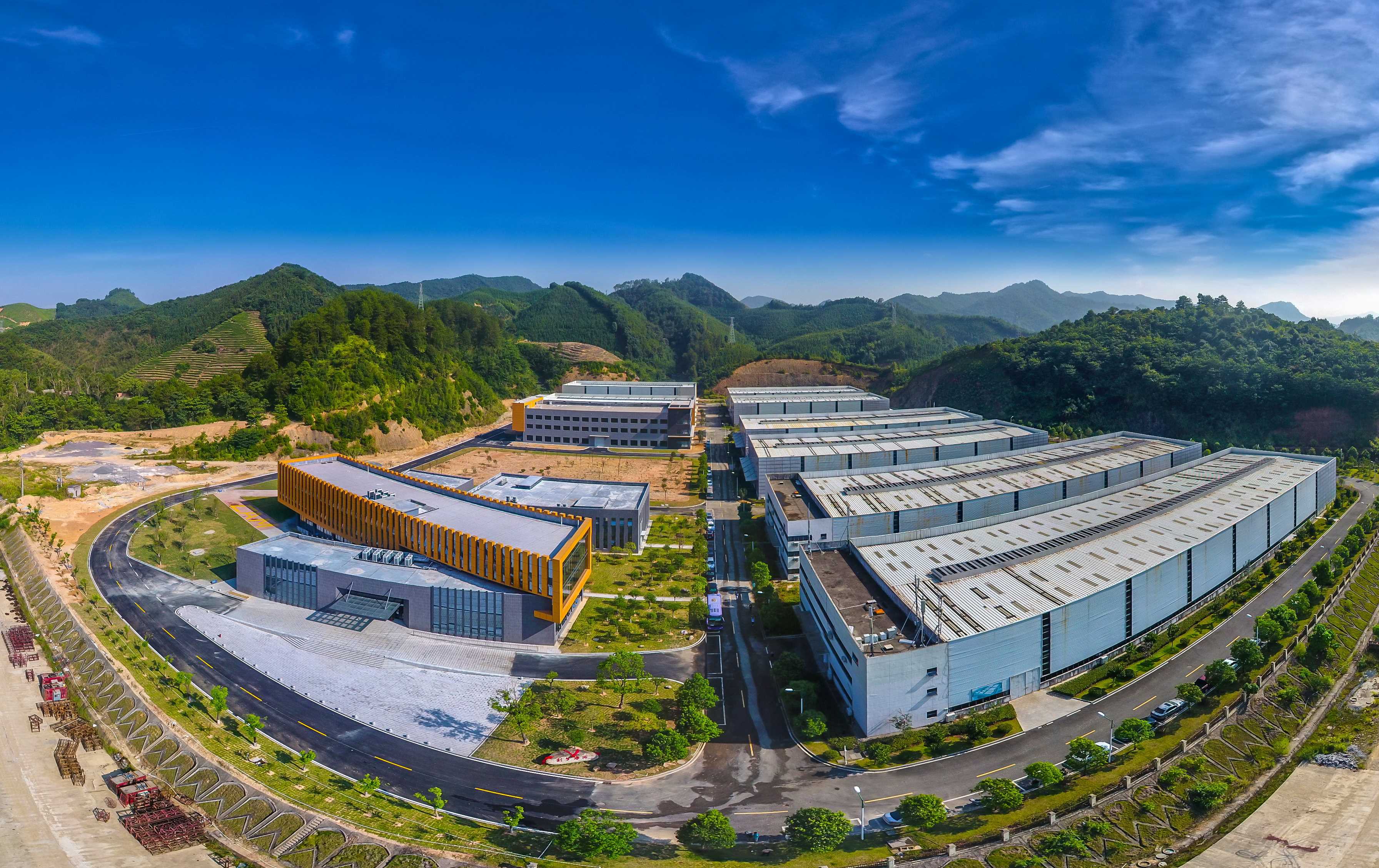

We are leader in manufacturing wide range of high precision CNC Machining Center (3-4-5Axes), CNC Horizontal Machining Center, Vertical Machining center, CNC Turning/Milling Center with ISO9001 standard. Our factory covers an area of about 15,000 square meters, with 5 workshops.

Our commitment is to supply advance technology of industrial machine in ensuring supreme satisfaction of our customers stepping into the new era of industry 4.0.

IMAS, Your Manufacturer of CNC Machining Centers.

Email: sales.imas2012@gmail.com

Whatsapp: +86 15859854109

Welcome Contact Us for More Details.
