2025 Sinoboom AB22J Plus Articulated Boom Lift- Shop Now

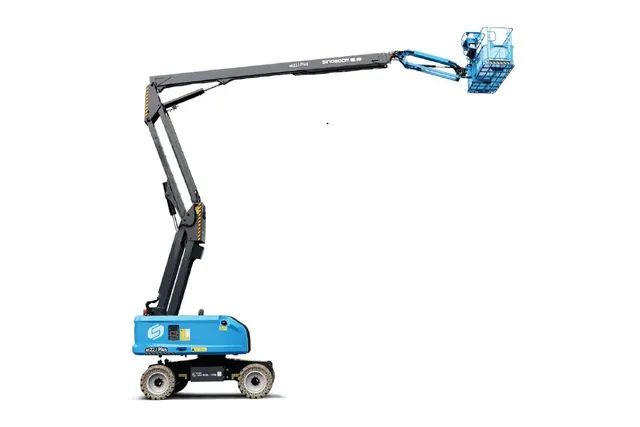

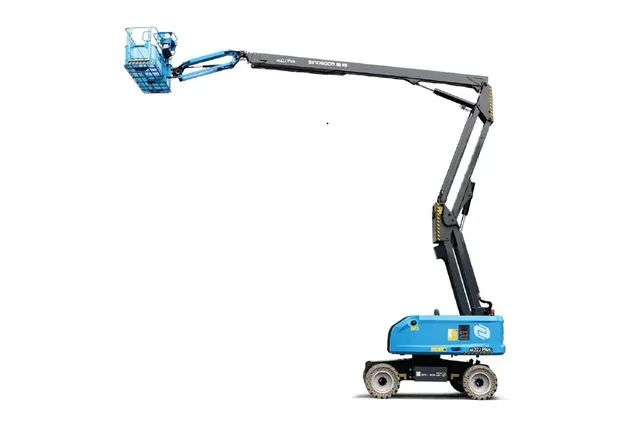

The Sinoboom AB22J Plus boom lift is designed for exceptional flexibility and efficiency, supporting heavy loads up to 454kg. Its automatic performance adjustment based on load weight guarantees optimal operation under various conditions. Equipped with a 4-wheel AC drive, it reliably climbs outdoor slopes with up to 40% gradeability. The lift’s continuous 360-degree turntable rotation and active oscillating function improve maneuverability on uneven surfaces. Built for adaptability, it smoothly navigates obstacles and ensures safety with enhanced stability, a fault diagnosis system, and accurate controls for effective and secure use in demanding settings.

Highlights

• Compact and Agile Design
• All-Terrain Versatility
• Safe, Advanced, Easy to Operatel

Technical specification

Reference Number: AMH268

Operating weight (kg): 12,000 Kg

Engine Output: 36 kW

Max Number of Operators: 3

Working Height: 23.6 m

Platform Capacity: 454 kg

Telematics: Available

Max Horizontal Extension: 13.35 m

Power: Diesel

Drive × Steer: 4WD x 2WS (4WS）

Turntable Rotation: 360°/Continuous

Gradeability: 40%

Features

• Proportional control with 3 joysticks
• Continuous 360° turntable rotation
• Active oscillating function
• Four-wheel steering - four-wheel brake
• Weighing system and automotive sleeves for all pipes
• AC power line to the platform
• 7-in smart screen and voice broadcast

Price: AED 163000

Request for quote: +971525384269
