2025 Sinoboom AB15J Articulated Boom Lift- Special Discount

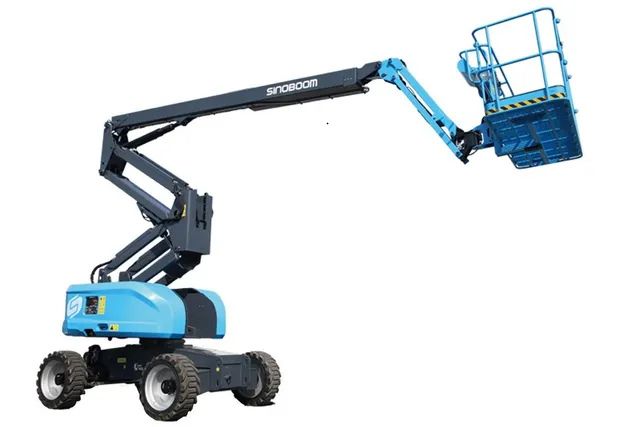

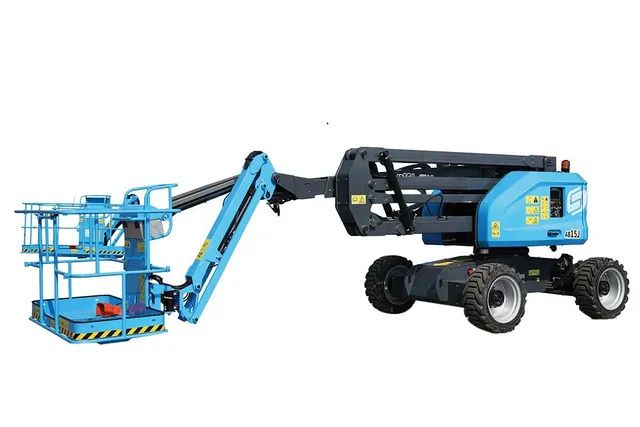

Engineered for efficient and accurate performance, the Sinoboom AB15J articulating boom lift offers a working height of 16.7 meters and excels in tight spaces thanks to its slim design and zero tail swing. The platform can move up or down without adjusting the secondary arm, providing greater flexibility on the job. Its straightforward linkage structure and hydraulic leveling contribute to stable, reliable functionality. With three joysticks featuring variable proportional controls, operators can expect precise and smooth control. Whether indoors or outdoors, the AB15J delivers dependable high-reach capabilities for facility management, maintenance, and construction applications.

Highlights

• Ultra-Compact Wheelbase for Tight Spaces
• Fast, Responsive Height Adjustments
• Reliable for Continuous Lifting Operations

Technical specification

Reference Number: AMH209

Operating weight (kg): 7,080 Kg

Engine Output: 36 kW

Max Number of Operators: 2

Working Height: 16.7 m

Platform Capacity: 250 kg

Max Horizontal Extension: 8.5 m

Power: Diesel engine

Drive × Steer: 4WD × 2WS

Turntable Rotation: 355°/Non-Continuous

Platform Rotation: 160°

Gradeability: 40%

Features

• Narrow width with zero tail sweep
• Oscillating function
• 7-in display screen
• 4WD× 2WS
• Proportional control with 3 joysticks
• Automotive-grade sleeves for all pipes
• Hydraulic platform leveling
• Weighing system

Price: AED 203000

Request for quote: +971525384269
