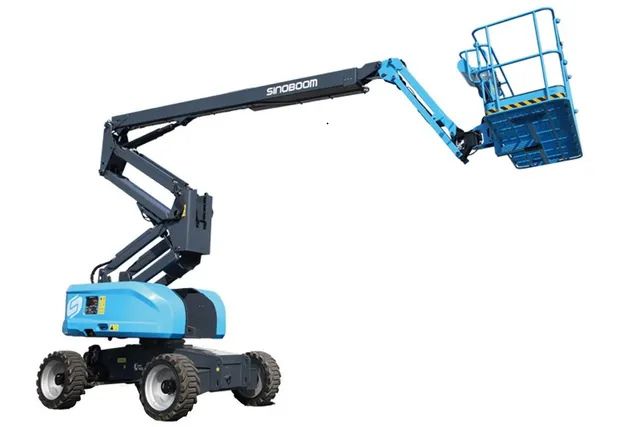

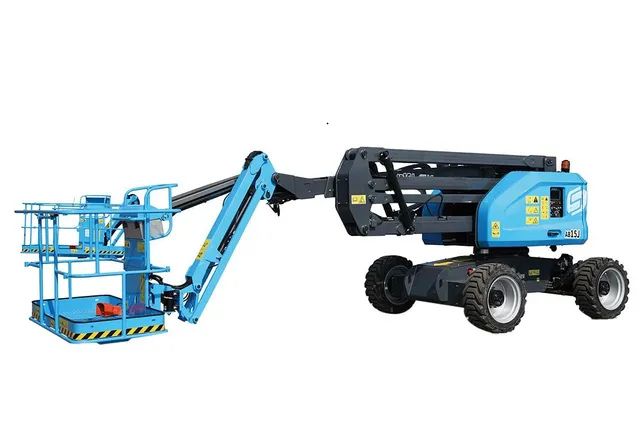

2025 Sinoboom AB15J Articulated Boom Lift- Special Deal

The Sinoboom AB15J articulating boom lift is engineered for high efficiency and precise control, reaching a maximum working height of 16.7 meters. Its compact width and zero tail swing make it perfectly suited for tight or confined workspaces. Operators can raise or lower the platform without repositioning the secondary arm, streamlining operation. The unit features a simple linkage design and hydraulic leveling system for stable, reliable performance. With three joysticks offering variable proportional control, it delivers smooth and accurate maneuverability. Built for both indoor and outdoor environments, the AB15J is ideal for tasks in construction, maintenance, and facility operations.

Highlights

• Ultra-Compact Wheelbase for Tight Spaces
• Fast, Responsive Height Adjustments
• Reliable for Continuous Lifting Operations

Technical specification

Reference Number: AMH209

Operating weight (kg): 7,080 Kg

Engine Output: 36 kW

Max Number of Operators: 2

Working Height: 16.7 m

Platform Capacity: 250 kg

Max Horizontal Extension: 8.5 m

Power: Diesel engine

Drive × Steer: 4WD × 2WS

Turntable Rotation: 355°/Non-Continuous

Platform Rotation: 160°

Gradeability: 40%

Features

• Narrow width with zero tail sweep
• Oscillating function
• 7-in display screen
• 4WD× 2WS
• Proportional control with 3 joysticks
• Automotive-grade sleeves for all pipes
• Hydraulic platform leveling
• Weighing system

Price: AED 203000

Request for quote: +971525384269
