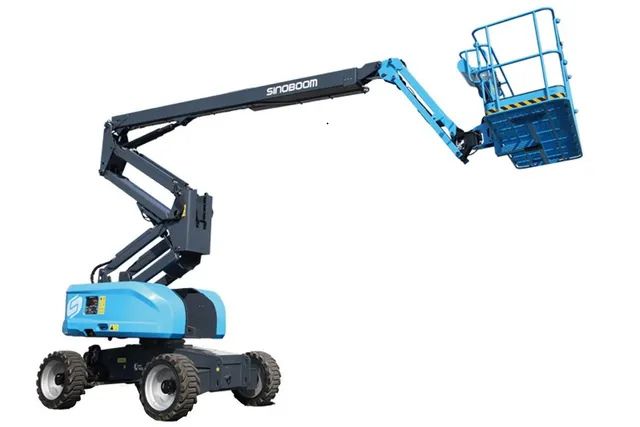

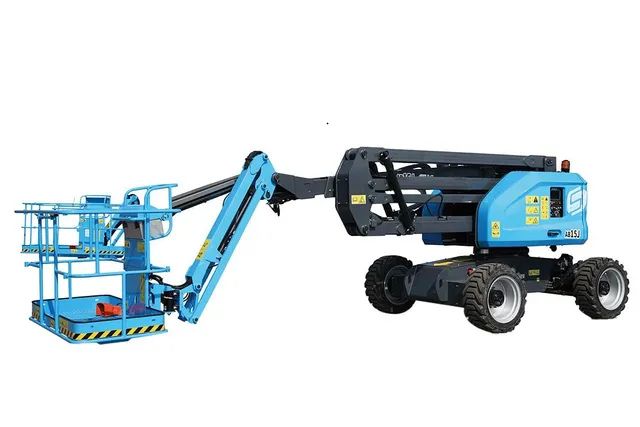

2025 Sinoboom AB15J Articulated Boom Lift – Powerful, and Ready for Work

The Sinoboom AB15J articulating boom lift combines efficiency and precision in a rugged, engine-powered design, capable of reaching up to 16.7 meters. Its sleek width and zero tail swing allow easy access in space-limited areas. The platform can be raised or lowered without adjusting the secondary arm, enhancing operational convenience. A simplified linkage setup and hydraulic leveling provide stable and trustworthy performance. Operated with three joysticks that offer variable proportional control, the AB15J ensures accurate and smooth maneuverability. Versatile enough for indoor and outdoor use, it’s an excellent solution for high-reach needs in construction, maintenance, and facility operations.

Highlights

• Ultra-Compact Wheelbase for Tight Spaces
• Fast, Responsive Height Adjustments
• Reliable for Continuous Lifting Operations

Technical specification

Reference Number: AMH209

Operating weight (kg): 7,080 Kg

Engine Output: 36 kW

Max Number of Operators: 2

Working Height: 16.7 m

Platform Capacity: 250 kg

Max Horizontal Extension: 8.5 m

Power: Diesel engine

Drive × Steer: 4WD × 2WS

Turntable Rotation: 355°/Non-Continuous

Platform Rotation: 160°

Gradeability: 40%

Features

• Narrow width with zero tail sweep
• Oscillating function
• 7-in display screen
• 4WD× 2WS
• Proportional control with 3 joysticks
• Automotive-grade sleeves for all pipes
• Hydraulic platform leveling
• Weighing system

Price: AED 203000

Request for quote: +971525384269
