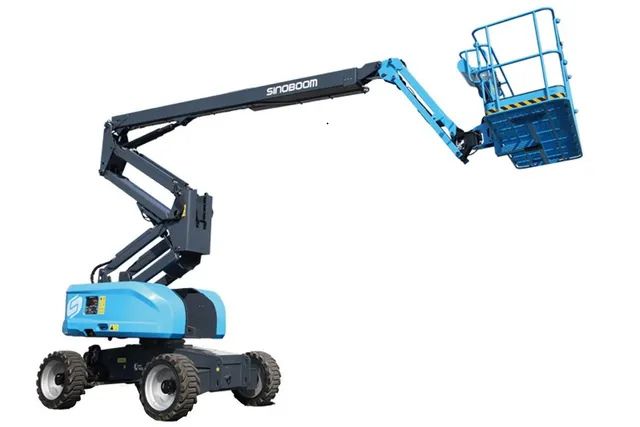

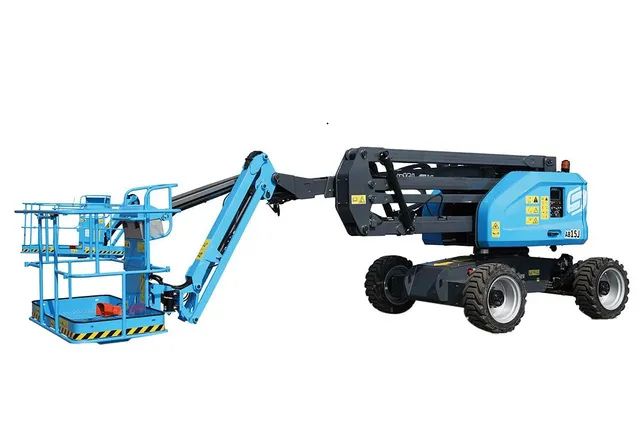

2025 Sinoboom AB15J Articulated Boom Lift- Heavy-Duty, Well-Maintained & Reliable

The Sinoboom AB15J is a high-performance engine-powered articulating boom lift designed for precision and productivity, offering a maximum working height of 16.7 meters. Its compact width and zero tail swing allow it to operate easily in tight or restricted spaces. The platform can be raised or lowered independently of the secondary arm, improving operational efficiency. Featuring a simplified linkage system and hydraulic leveling, the AB15J ensures consistent and reliable performance. With three variable proportional control joysticks, it provides smooth and accurate handling. Suitable for both indoor and outdoor environments, this lift is ideal for construction, maintenance, and facility management work.

Highlights

• Ultra-Compact Wheelbase for Tight Spaces
• Fast, Responsive Height Adjustments
• Reliable for Continuous Lifting Operations

Technical specification

Reference Number: AMH209

Operating weight (kg): 7,080 Kg

Engine Output: 36 kW

Max Number of Operators: 2

Working Height: 16.7 m

Platform Capacity: 250 kg

Max Horizontal Extension: 8.5 m

Power: Diesel engine

Drive × Steer: 4WD × 2WS

Turntable Rotation: 355°/Non-Continuous

Platform Rotation: 160°

Gradeability: 40%

Features

• Narrow width with zero tail sweep
• Oscillating function
• 7-in display screen
• 4WD× 2WS
• Proportional control with 3 joysticks
• Automotive-grade sleeves for all pipes
• Hydraulic platform leveling
• Weighing system

Price: AED 203000

Request for quote: +971525384269
