2025 Sinoboom AB15J Articulated Boom Lift- Discount Alert

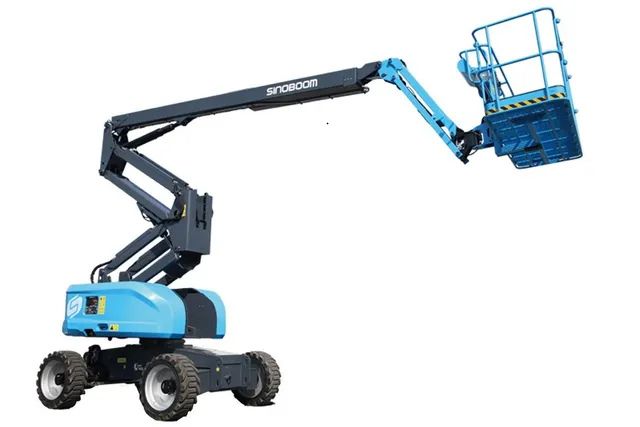

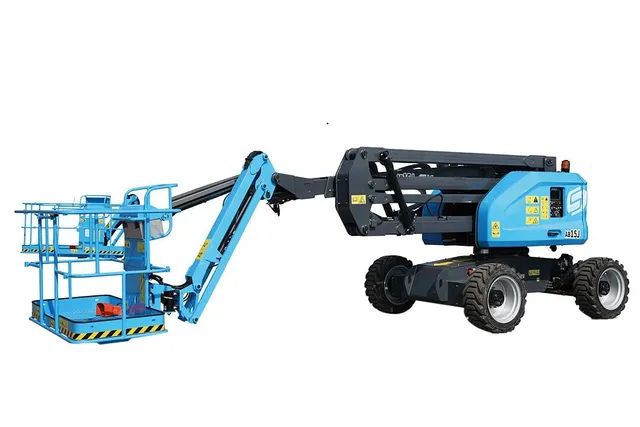

Built to handle demanding jobs with both accuracy and reliability, the Sinoboom AB15J boom lift features a working height of 16.7 meters. Its narrow frame and zero tail swing make it ideal for maneuvering in compact spaces. The platform can be lifted or lowered without repositioning the secondary boom, improving operator convenience. Thanks to its straightforward linkage design and hydraulic leveling system, the lift maintains stable performance on various terrains. Equipped with three variable proportional joysticks, it offers smooth and controlled movements. Designed for versatility, the AB15J performs exceptionally well in both indoor and outdoor environments for construction, maintenance, and facility tasks.

Highlights

• Ultra-Compact Wheelbase for Tight Spaces
• Fast, Responsive Height Adjustments
• Reliable for Continuous Lifting Operations

Technical specification

Reference Number: AMH209

Operating weight (kg): 7,080 Kg

Engine Output: 36 kW

Max Number of Operators: 2

Working Height: 16.7 m

Platform Capacity: 250 kg

Max Horizontal Extension: 8.5 m

Power: Diesel engine

Drive × Steer: 4WD × 2WS

Turntable Rotation: 355°/Non-Continuous

Platform Rotation: 160°

Gradeability: 40%

Features

• Narrow width with zero tail sweep
• Oscillating function
• 7-in display screen
• 4WD× 2WS
• Proportional control with 3 joysticks
• Automotive-grade sleeves for all pipes
• Hydraulic platform leveling
• Weighing system

Price: AED 203000

Request for quote: +971525384269
